Description：
| Model | SG63S-300W | SG63S-800W |
Input Voltage*
| DC220V/DC12V/24v/48V
| DC220V/DC12V/24V/48V |
Power
| 300W | 800W |
Stroke Length *
| 50-300mm | 50-300mm |
Jacking Force
| 4.5T | 4.5T |
Retracting Force
| 2.8T | 2.8T |
| Speed | 2-3mm/s | 6-7mm/s |
Operating Temprature
| -20буC~+60буC
| -20буC~+60буC
|
Duty Cycle
| Long-term continuous use 4 mins/time
| Long-term continuous use 6 mins/time
|
Protection Grade
| IPx6
|
Certification
| CE |
| Warranty | 1 year |

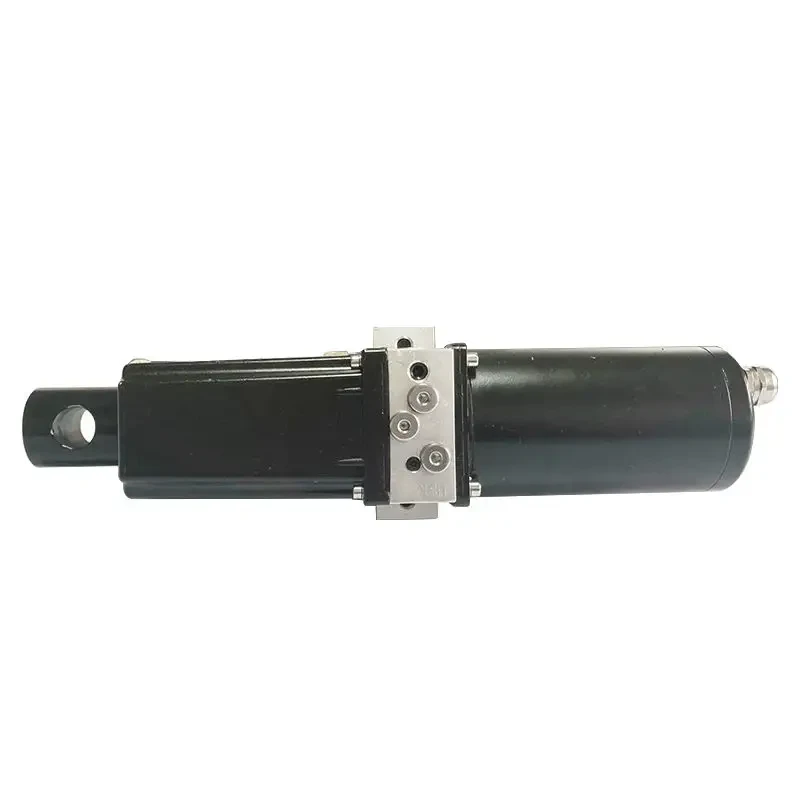

Hydraulic Linear Actuator Details
Oil filler plug: The oil is added or replaced from the plug.
Jacking force adjustment plug: When users unscrew the plug, tighten the nut,
the jacking force will increase. When loosening the nut, the force will decrease.
Retracting force adjustment plug: When users unscrew the plug, tighten the nut,
the retracting force increases. When loosening the nut, the force decreases.
Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons,
loosen the safety valve to enable the ejector rod to recover automatically under the action of load force.
Be sure to screw it tightly before the next time users use it.
Application：
Mining Equipment: Bucket wheel excavators for controlled digging.
Research Laboratories: Positioning of experimental setups.
Automotive Manufacturing: Assembly line operations for precise component placement.
Elevators and Escalators: Elevator cabins and escalator steps movement.
Agricultural Irrigation: Adjustable irrigation gates and valves.
Renewable Energy: Solar tracking systems for maximizing energy capture.
