Description：
| Model | SG40-500-300W | SG40-500-800W |
Input Voltage*
| 220V AC/ 12V/24v/ 48V DC
| 24V/48V DC |
Power
| 300W | 800W |
Stroke Length *
| 500mm | 500mm |
Jacking Force
| 1.8T | 1.8T |
Retracting Force
| 1T | 1T |
| Speed | 7-8mm/s | 15-18mm/s |
Operating Temprature
| -20буC~+60буC
| -20буC~+60буC
|
Duty Cycle
| Long-term continuous use 4 mins/time
| Long-term continuous use 6 mins/time
|
Protection Grade
| IPx6
|
Certification
| CE |
| Warranty | 1 year |
| Weight | 12kg |
Hydraulic Linear Actuator Details
Oil filler plug: The oil is added or replaced from the plug.
Jacking force adjustment plug: When users unscrew the plug, tighten the nut, the jacking force will increase.
When loosening the nut, the force will decrease.
Retracting force adjustment plug: When users unscrew the plug, tighten the nut,
the retracting force increases. When loosening the nut, the force decreases.
Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons,
loosen the safety valve to enable the ejector rod to recover automatically under the action of load force.
Be sure to screw it tightly before the next time users use it.
Application：
Hydraulic Presses: Precision bending and forming operations.
Oil and Gas Industry: Valve actuators for pipeline flow control.
Construction Equipment: Crane booms for lifting and positioning heavy loads.Scissor lifts for elevated work platforms.
Printing Industry: Paper feed systems in printing presses.
Bridge and Dam Construction: Floodgate and barrier positioning.
Research Laboratories: Positioning of experimental setups.

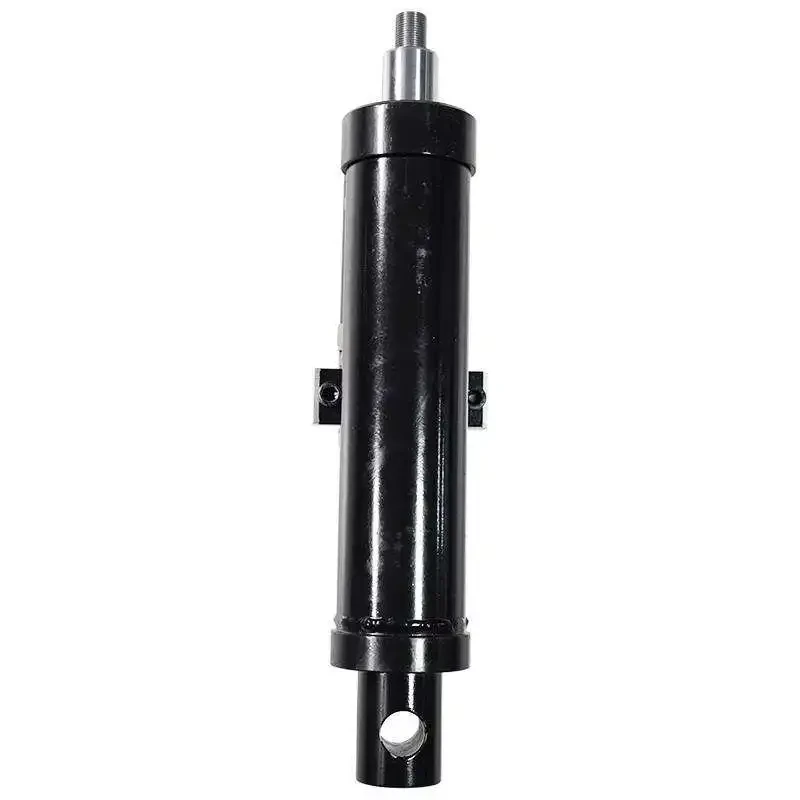

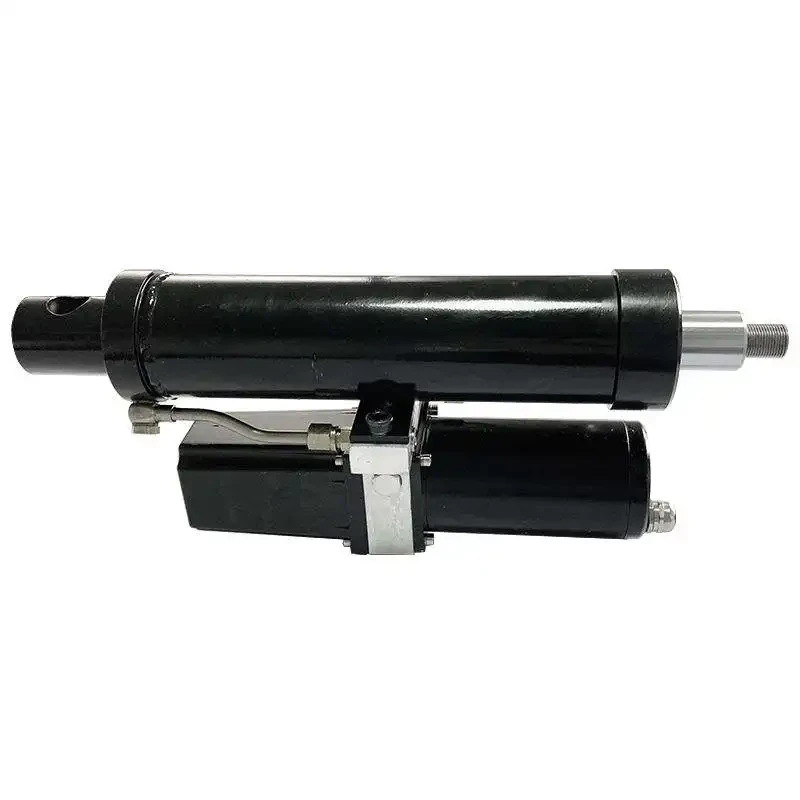

Image Gallery：
