Description：
| Model | SG32-500-300W | SG32-500-800W |
Input Voltage
| 220V AC/ 12V/24v/ 48V DC
| 24V/48V DC |
Power
| 300W | 800W |
Stroke Length *
| 500mm | 500mm |
Jacking Force
| 1T | 1T |
Retracting Force
| 0.5T | 0.5T |
| Speed | 10-12mm/s | 20-25mm/s |
Operating Temprature
| -20буC~+60буC
| -20буC~+60буC
|
Duty Cycle
| Long-term continuous use 4 mins/time
| Long-term continuous use 6 mins/time
|
Protection Grade
| IPx6
|
Certification
| CE |
| Warranty | 1 year |
| Weight | 8.9KG 10.9KG |

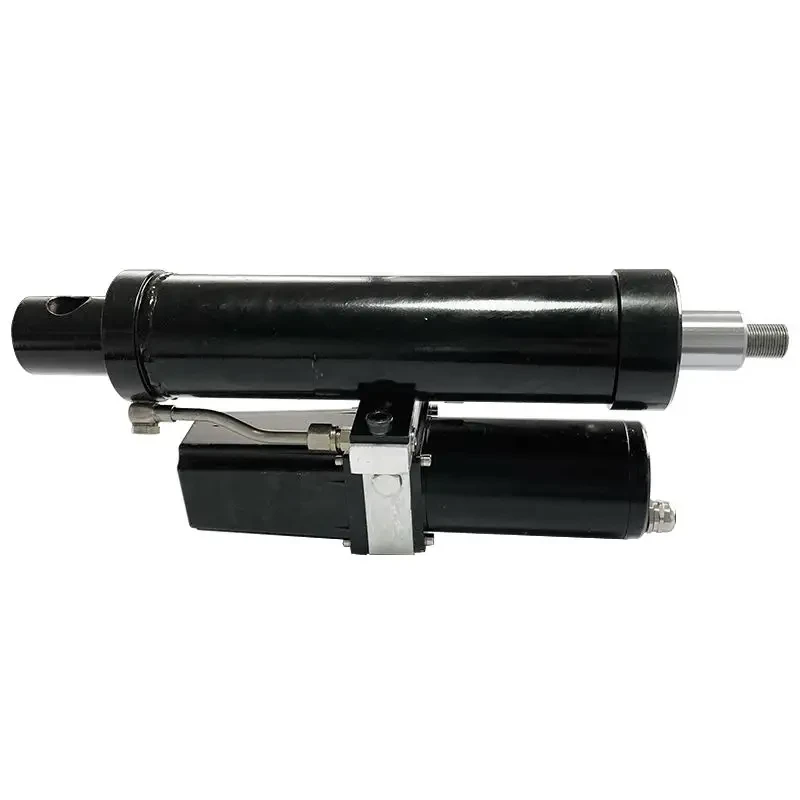

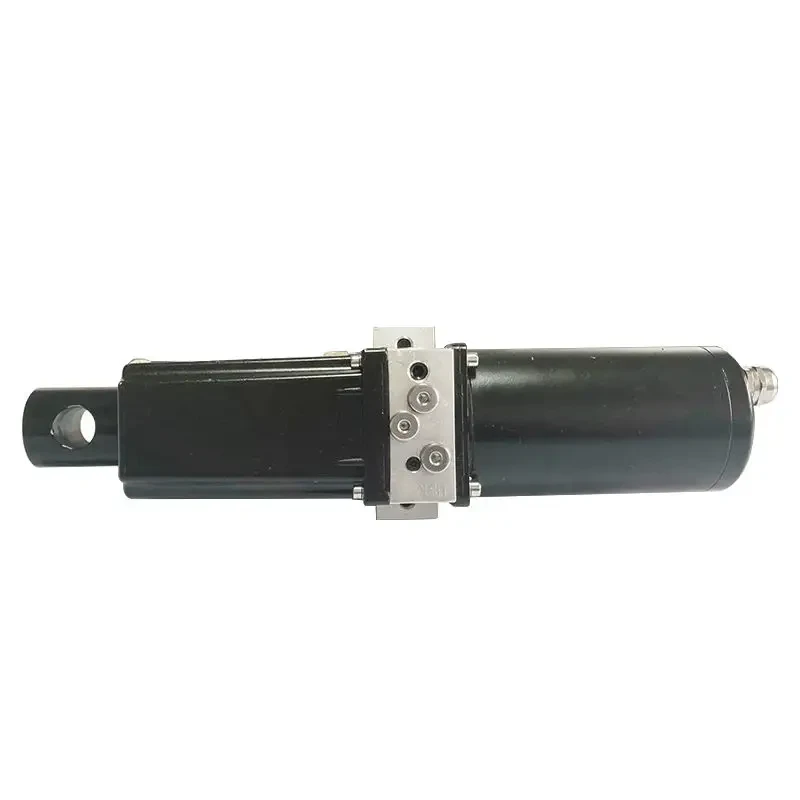

Hydraulic Linear Actuator Details
Oil filler plug: The oil is added or replaced from the plug.
Jacking force adjustment plug: When users unscrew the plug, tighten the nut,
the jacking force will increase. When loosening the nut, the force will decrease.
Retracting force adjustment plug: When users unscrew the plug, tighten the nut, the retracting force increases.
When loosening the nut, the force decreases.Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons,
loosen the safety valve to enable the ejector rod to recover automatically under the action of load force.
Be sure to screw it tightly before the next time users use it.
Application：
Industrial Robotics: Robotic arms and manipulators for precise movement.
Research Laboratories: Positioning of experimental setups.
Automated Testing Equipment: Quality control and inspection systems.
Defense Industry: Missile launcher elevation and azimuth control.
Firefighting Equipment: Aerial ladder and water cannon control.
Construction Equipment: Crane booms for lifting and positioning heavy loads.Scissor lifts for elevated work platforms.
Image Gallery：
Product Video：
PROVIDING EXCELLENT SOLUTIONS BY SAIVS™
Speak to one of our experts today to learn more about our SG32-500,1T Micro DC Hydraulic Actuator Electric Push Rod products solutions.
