Description：
| Model | SG20S-300W | SG20S-800W |
Input Voltage*
| DC220V/DC12V/24v/48V
| DC220V/DC12V/24V/48V |
Power
| 300W | 800W |
Stroke Length *
| 50-800mm | 50-800mm |
Jacking Force
| 400KG | 400KG |
Retracting Force
| 110KG | 110KG |
| Speed | 26-30mm/s | 50-58mm/s |
Operating Temprature
| -20буC~+60буC
| -20буC~+60буC
|
Duty Cycle
| Long-term continuous use 4 mins/time
| Long-term continuous use 6 mins/time
|
Protection Grade
| IPx6
|
Certification
| CE |
| Warranty | 1 year |

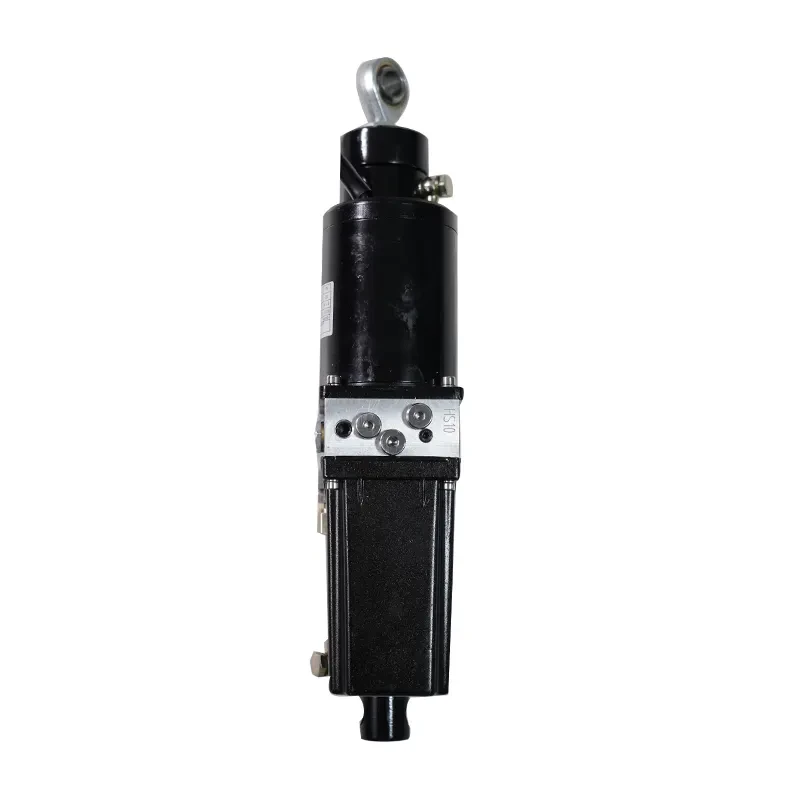

Hydraulic Linear Actuator Details
Oil filler plug: The oil is added or replaced from the plug.
Jacking force adjustment plug: When users unscrew the plug, tighten the nut,
the jacking force will increase. When loosening the nut, the force will decrease.
Retracting force adjustment plug: When users unscrew the plug, tighten the nut,
the retracting force increases. When loosening the nut, the force decreases.
Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons,
loosen the safety valve to enable the ejector rod to recover automatically under the action of load force.
Be sure to screw it tightly before the next time users use it.
Application：
Defense Industry: Missile launcher elevation and azimuth control.
Food and Beverage Industry: Packaging machinery for precise product placement.
Medical Equipment: Hospital bed adjustments for patient comfort.Operating table positioning during surgeries.
Automotive Sector: Convertible roof mechanisms.Tailgate opening and closing systems.
Automotive Manufacturing: Assembly line operations for precise component placement.
Research Laboratories: Positioning of experimental setups.
