SJL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders

5out of5based on4 reviews | Write a review

SJL Seires=CLL Seires

Capacity: 50-800ton

Stroke: 50-300mm

Max.pressur: 700bar

Single acting, loads return.

Special painted surface to increase corrosion resistance.

Lock nut ensure the safety of long time load holding.

All model include quick couplings (N

We offer a wide range of hydraulic tools that can perfectly replace and correspond with all Enerpac products.We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

SJL Seires=CLL Seires

Capacity: 50-800ton

Stroke: 50-300mm

Max.pressur: 700bar

Single acting, loads return.

Special painted surface to increase corrosion resistance.

Lock nut ensure the safety of long time load holding.

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Overflow port function could limit the stroke.

The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts,reduces wear and extending life.

Removable hardened saddles protect plunger during lifting and pressing.

Double-acting mechanical lock nut cylinder could be customized.

Lock nut ensure the safety of long time load holding.

Top and side mounted lifting eyes.

Overflow port function could limit the stroke.

SMA-NPT3/8 coupler and dustcap.When low height with high force is required, SSL Series hydraulic pancake cylinders with lock nut offer the solution to lift the fiest few centimetres.ALL SJLSeries cylinders include integral tilt saddles with maximum tilt angles up to 5°.

Select appropriate pumps for offer optimum combination.Select SAIVS high quality high pressure hoses.

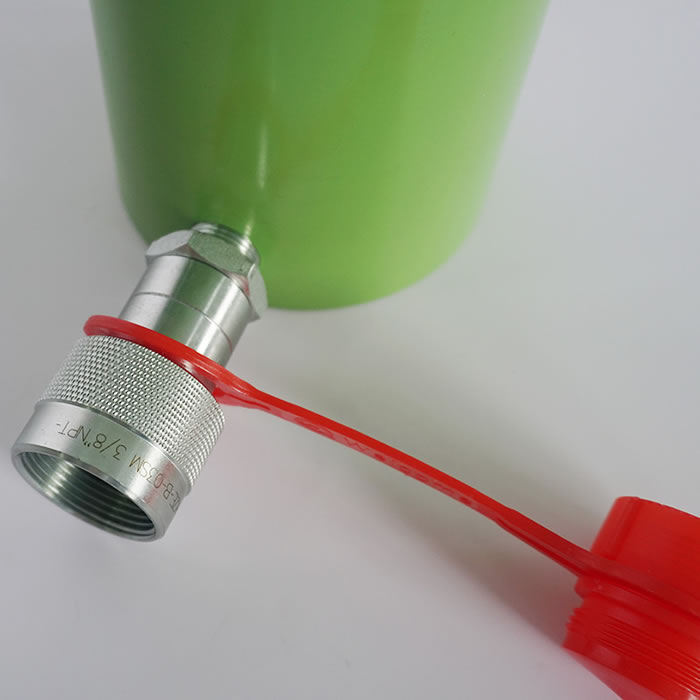

SJL Hydraulic-cylinder.jpg

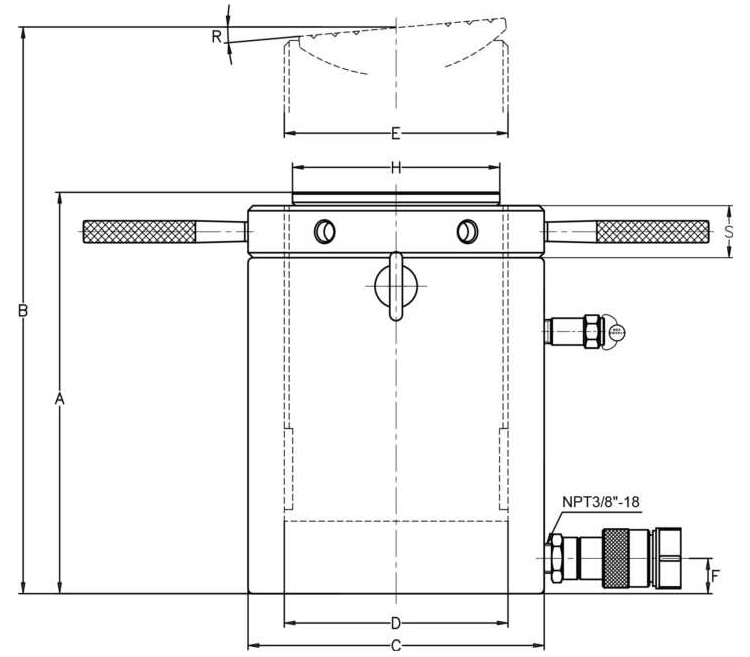

SJL Hydraulic-cylinder-3.jpg

SJL Series Single-Acting High Tonnage Lock-Nut Cylinders
Cylinder Capacity	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.(Thread)	Base to Advance Port	Saddle Dia.	Saddle Max.Tilt Angle	Lock nut Height	Weight
Cylinder Capacity	Stroke		Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.(Thread)	Base to Advance Port	Saddle Dia.	Saddle Max.Tilt Angle	Lock nut Height	Weight
					A	B	C	D	E	F	H	R	S
ton(KN)	(mm)		(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(mm)	(kg)
50 (550)	50	SJL50-50	78.5	392	192	242	140	100	Tr99x4	24	90	5°	30	18
	100	SJL50-100	78.5	784	242	342	140	100	Tr99x4	24	90	5°	30	25
	150	SJL50-150	78.5	1176	292	442	140	100	Tr99x4	24	90	5°	30	33
	200	SJL50-200	78.5	1568	342	542	140	100	Tr99x4	24	90	5°	30	41
	300	SJL50-300	78.5	2352	442	742	140	100	Tr99x4	24	90	5°	30	53
100 (1077)	50	SJL100-50	153.9	770	213	263	188	140	Tr139x6	26	130	5°	40	46
	100	SJL100-100	153.9	1540	263	363	188	140	Tr139x6	26	130	5°	40	57
	150	SJL100-150	153.9	2310	313	463	188	140	Tr139x6	26	130	5°	40	68
	200	SJL100-200	153.9	3080	363	563	188	140	Tr139x6	26	130	5°	40	79
	300	SJL100-300	153.9	4620	463	763	188	140	Tr139x6	26	130	5°	40	101
150 (1588)	50	SJL150-50	226.9	1134	209	259	228	170	Tr159x6	49	160	5°	38	56
	100	SJL150-100	226.9	2269	259	359	228	170	Tr159x6	49	160	5°	38	70
	150	SJL150-150	226.9	3403	309	459	228	170	Tr159x6	49	160	5°	38	83
	200	SJL150-200	226.9	4538	359	559	228	170	Tr159x6	49	160	5°	38	97
	300	SJL150-300	226.9	6806	459	759	228	170	Tr159x6	49	160	5°	38	124
200 (2198)	50	SJL200-50	314	1570	243	293	268	200	Tr199x6	51	186	5°	52	93
	150	SJL200-150	314	4712	343	493	268	200	Tr199x6	51	186	5°	52	131
	300	SJL200-300	314	9423	493	793	268	200	Tr199x6	51	186	5°	52	189
300 (3434)	50	SJL300-50	490.6	2453	295	345	320	250	Tr249x6	59	236	5°	60	179
	150	SJL300-150	490.6	7359	395	545	320	250	Tr249x6	59	236	5°	60	240
	300	SJL300-300	490.6	14718	545	845	320	250	Tr249x6	59	236	5°	60	331
400 (4308)	50	SJL400-50	615.4	3077	335	385	370	280	Tr279x6	70	256	5°	70	266
	150	SJL400-150	615.4	9231	435	585	370	280	Tr279x6	70	256	5°	70	345
	300	SJL400-300	615.4	18462	585	885	370	280	Tr279x6	70	256	5°	70	464
500 (5114)	50	SJL500-50	803.8	4019	375	425	420	320	Tr319x6	80	306	5°	80	358
	150	SJL500-150	803.8	12057	475	625	420	320	Tr319x6	80	306	5°	80	454
	300	SJL500-300	803.8	24114	625	925	420	320	Tr319x6	80	306	5°	80	597
600 (6300)	50	SJL600-50	1017.4	5087	395	445	500	360	Tr359x6	85	346	5°	85	490
	150	SJL600-150	1017.4	15261	495	645	500	360	Tr359x6	85	346	5°	85	614
	300	SJL600-300	1017.4	30522	645	945	500	360	Tr359x6	85	346	5°	85	800
800 (8790)	50	SJL800-50	1256	6280	455	505	550	400	Tr399x6	100	386	5°	100	843
	150	SJL800-150	1256	18840	555	705	550	400	Tr399x6	100	386	5°	100	1028
	300	SJL800-300	1256	37698	705	1005	550	400	Tr399x6	100	386	5°	100	1306

Application

Supporting aircraft during maintenance

Helping in the placement of utility poles

Lifting and leveling portable buildings and cabins

Facilitating material handling in factories

Raising and lowering hydraulic press beds

Positioning heavy loads for welding
