Description：

The torque wrench body is made of metal structure, sturdy and durable, with a long service life.

Accuracy: The torque error value is ± 4%.

The ratchet head material is made of chrome vanadium alloy steel, which is sturdy and durable.

It can be easily reversed through reversing paddles

and is equipped with a quick release button, making single hand operation convenient and efficient.

The plastic handle of the wrench is made of imported materials,

which has the characteristics of oil resistance, anti slip, anti drop, and durability.

The permanent torque scale on the alloy steel pipe

is easy for users to read and can be compared in metric and English systems.

Each torque wrench has a unique product identification code.

DP type preset torque wrench
Model Number	Torque range		Driver/inch	Fine Scale/N.m		Length/mm	Width/mm	Height/mm	Weight/Kg
Model Number	N.m	Lbf.ft	Driver/inch	N.m	Lbf.ft	Length/mm	Width/mm	Height/mm	Weight/Kg
DP19601	1-5	2-9	1/4"	0.05	0.067	230	28	28	0.38
DP19602	2-12	2-9	1/4"、 3/8"	0.1	0.074	230	34	30	0.5
DP19603	4-20	3-15	1/4"、 3/8"	0.2	0.147	230	34	30	0.55
DP19604	5-25	4-19	1/4"、 3/8"	0.2	0.147	230	34	30	0.55
DP19605	6-30	5-23	3/8"	0.2	0.147	290	34	30	0.58
DP19606	10-60	9-46	3/8"、 1/2"	0.5	0.369	290	41	34	0.98
DP19607	10-100	7-75	1/2"	0.5	0.369	410	41	34	1
DP19608	20-100	15-75	1/2"	0.5	0.369	410	41	34	1
DP19609	25-125	20-94	1/2"	0.5	0.369	410	41	34	1
DP19610	40-200	30-150	1/2"	1.0	0.738	470	41	34	1.06
DP19611	20-210	15-155	1/2"	1.0	0.738	470	41	34	1.06
DP19612	60-300	45-226	3/4"	1.0	0.738	625	45	38	1.99
DP19613	65-335	50-250	3/4"	1.0	0.738	625	45	38	1.99
DP19614	65-350	50-260	3/4"	1.0	0.738	625	45	38	1.99
DP19615	80-400	60-300	3/4"	2.0	1.475	675	45	38	2.01
DP19616	100-500	80-376	3/4"	2.0	1.475	675	45	38	2.01

Application：

Foundries: Used for tightening castings and molds.

Metallurgical industry: Used for tightening metallurgical equipment and process pipelines.

Bridge construction: Used for tightening bridge structures and bolt connections.

Railway maintenance: Used for tightening rail tracks and railway equipment.

Building construction: Used for installing steel structures and precast components.

Manufacturing assembly lines: Used for torque-controlled assembly of products.

Image Gallery：

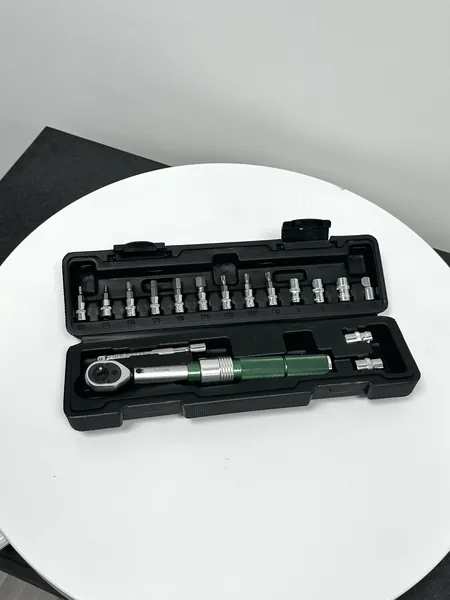

1-500 Nm Preset Torque Wrench,DP Series-1-Image-SAIVS

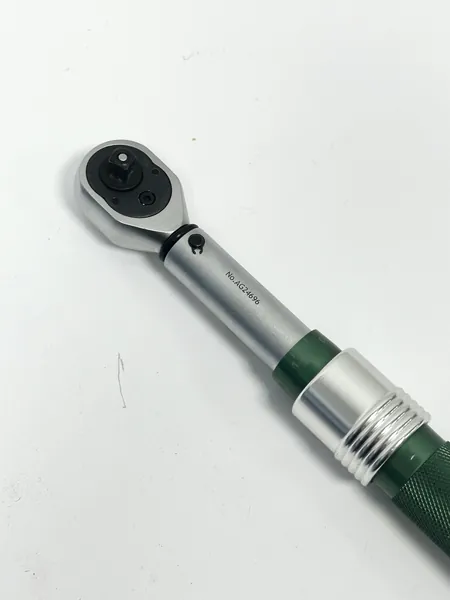

1-500 Nm Preset Torque Wrench,DP Series-2-Image-SAIVS

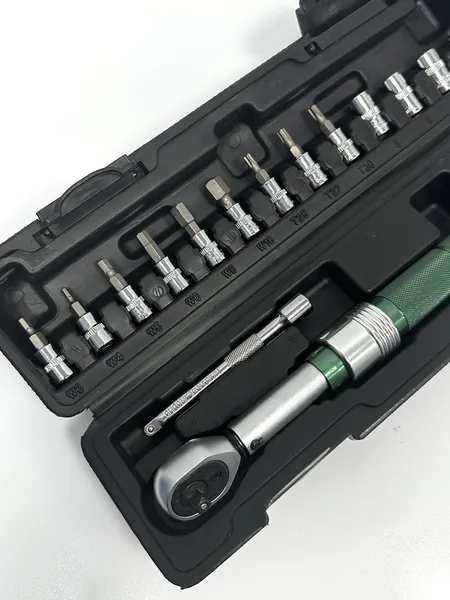

1-500 Nm Preset Torque Wrench,DP Series-3-Image-SAIVS

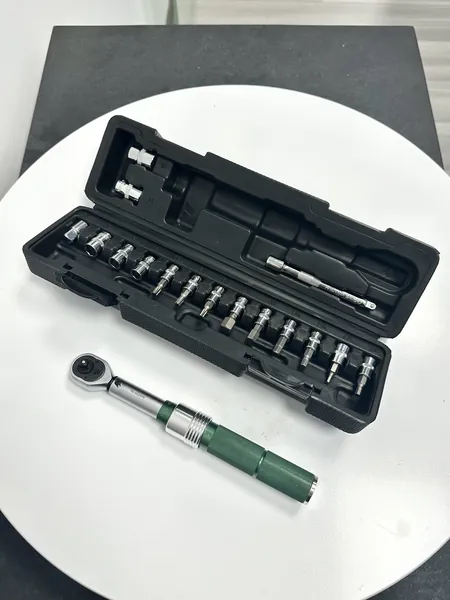

1-500 Nm Preset Torque Wrench,DP Series-4-Image-SAIVS
