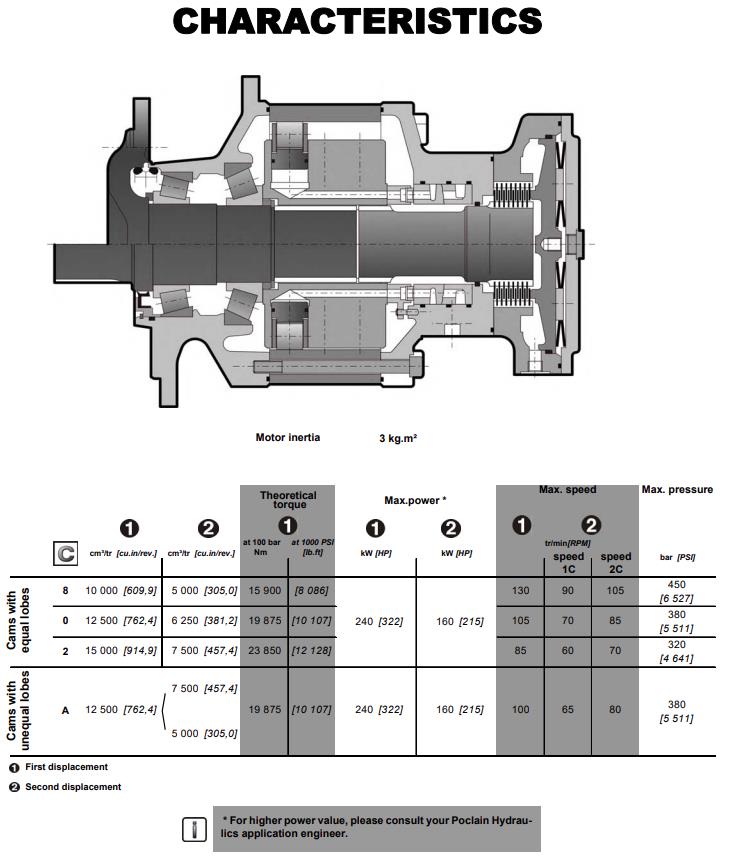

Technical specifications

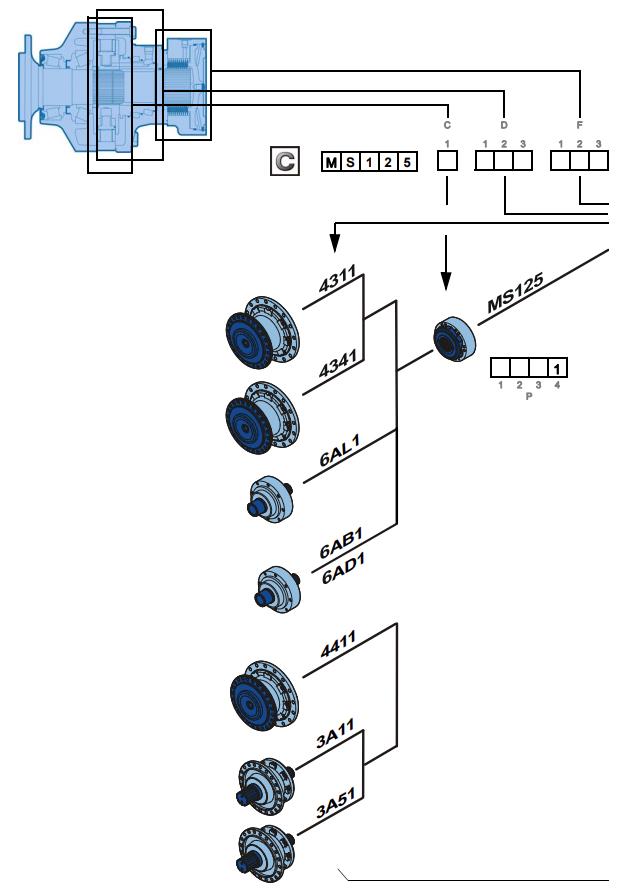

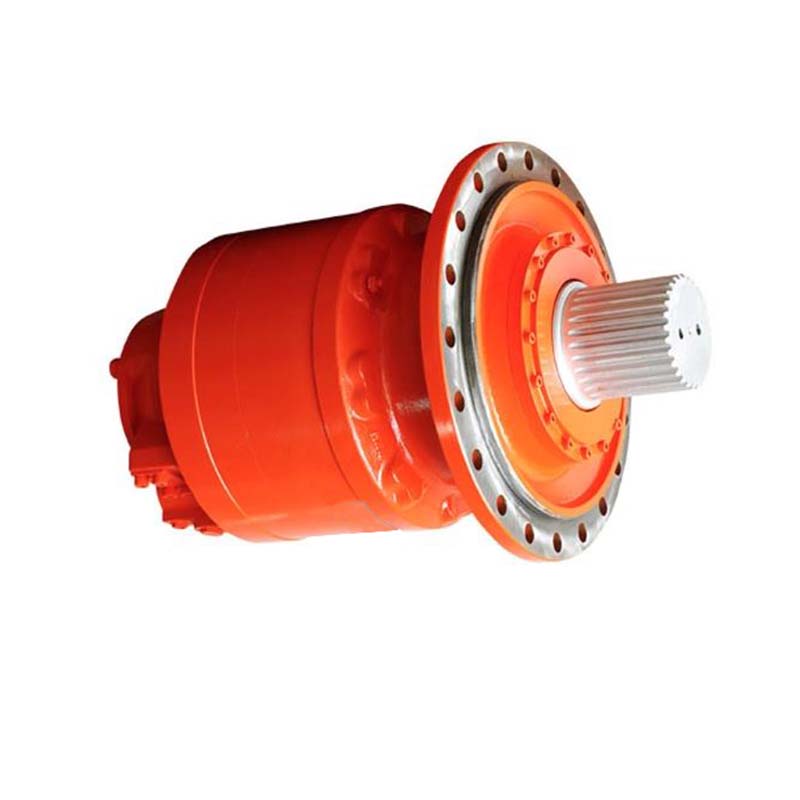

MS125 motor max 15000cc, up to 240 kW
MAX. Displacement CM3/REV:1500
Power MAX (kW):240
Power MAX (HP):322
Torque MAX (Nm at 100 bar):77000
Torque MAX (lb.ft at 1000 PSI):56792
Speed MAX (RPM):130
MAX Pressure(bar):450
MAX Pressure(psi):
Minimum Order:
Supply Ability:
Technical specifications
MS125 motor max 15000cc, up to 240 kW
MAX. Displacement CM3/REV:1500
Power MAX (kW):240
Power MAX (HP):322
Torque MAX (Nm at 100 bar):77000
Torque MAX (lb.ft at 1000 PSI):56792
Speed MAX (RPM):130
MAX Pressure(bar):450
MAX Pressure(psi):6527
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit the circuit temperature. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range - the shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C an operating temperature of 60 °C is set. In the optimum operating viscosity range (shaded area) this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68. Please note: The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point in the system may the temperature be higher than 115 °C. If the above conditions cannot be maintained due to extreme operating parameters.
Hydraulic fluid:
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids) and RE 90223 (HF hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions. The variable pump A4VG is unsuitable for operation with HFA, HFB and HFC. If HFD or environmentally acceptable hydraulic fluids are being used, the limitations regarding technical data and seals mentioned in RE 90221 and RE 90223 must be observed. When ordering, please indicate the used hydraulic fluid.
