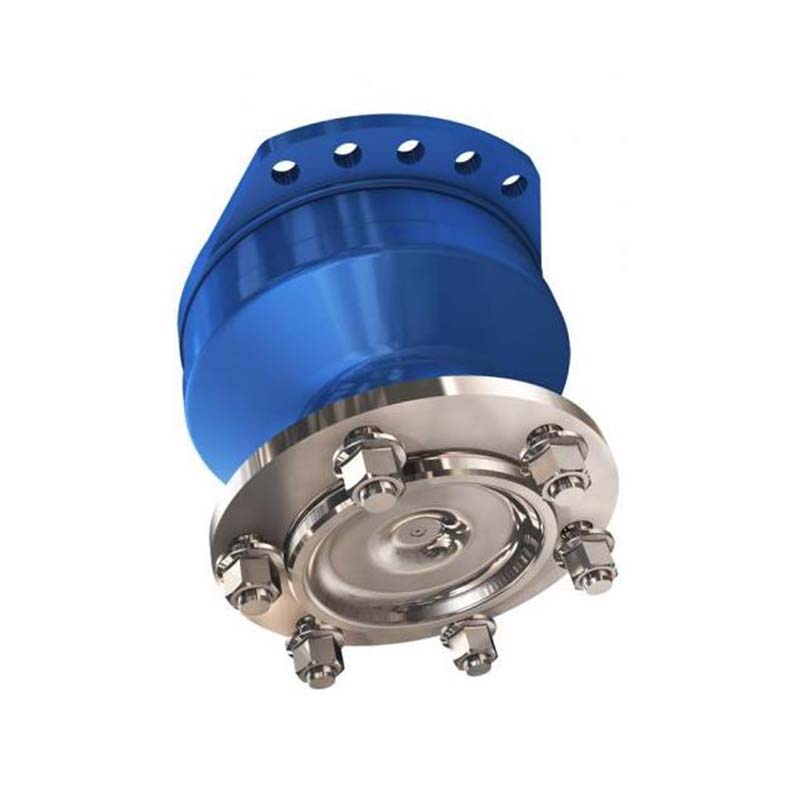

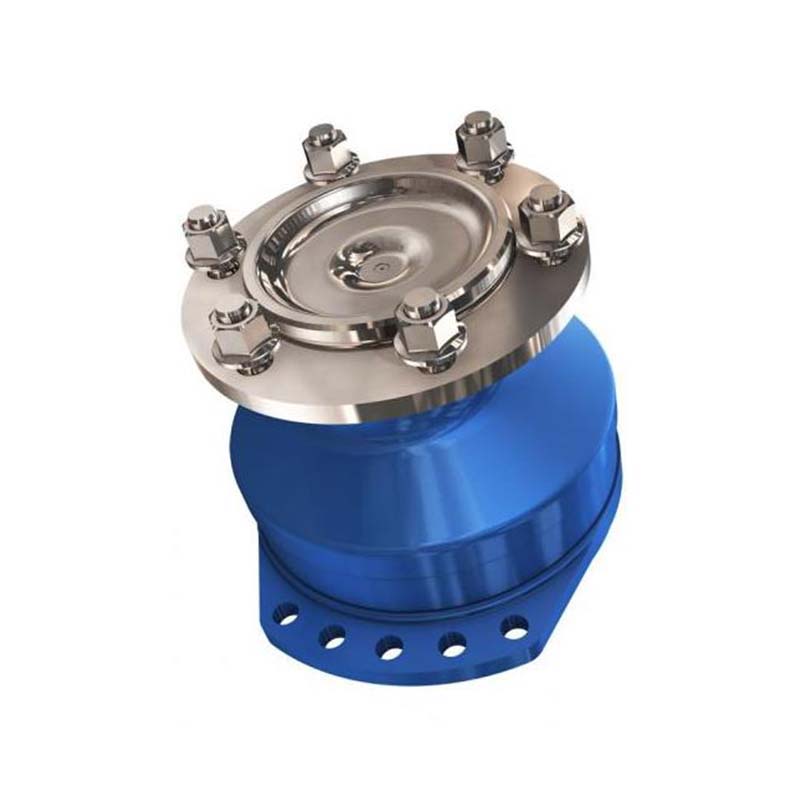

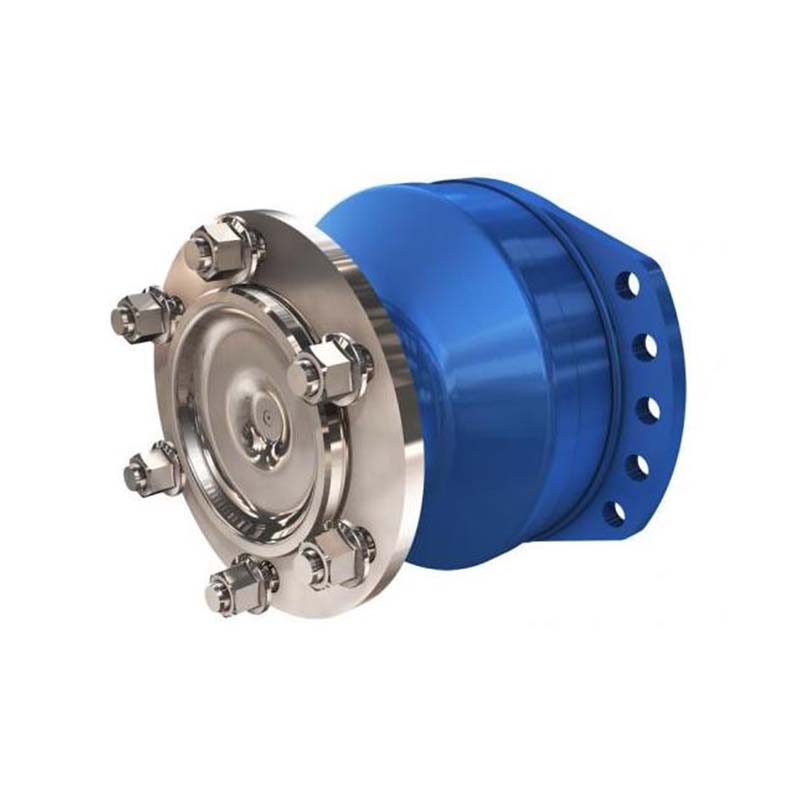

ms11 / mse11 low speed large torgue motor made in china

5out of5 based on2 reviews | Write a review
  • Technical specifications

    MS11-MSE11 motor max 1687cc, up to 50 kW

    MAX. Displacement CM3/REV:1687

    Power MAX (kW):50

    Power MAX (HP):67

    Torque MAX (Nm at 100 bar):10700

    Torque MAX  (lb.ft at 1000 PSI):7891

    Speed MAX (RPM):450

    MAX Pressure(bar):450

    MAX Pressure(psi):

    Minimum Order:6 Pieces

    Supply Ability:700 Piece/ Month

Technical specifications

MS11-MSE11 motor max 1687cc, up to 50 kW

MAX. Displacement CM3/REV:1687

Power MAX (kW):50

Power MAX (HP):67

Torque MAX (Nm at 100 bar):10700

Torque MAX  (lb.ft at 1000 PSI):7891

Speed MAX (RPM):450

MAX Pressure(bar):450

MAX Pressure(psi):6527

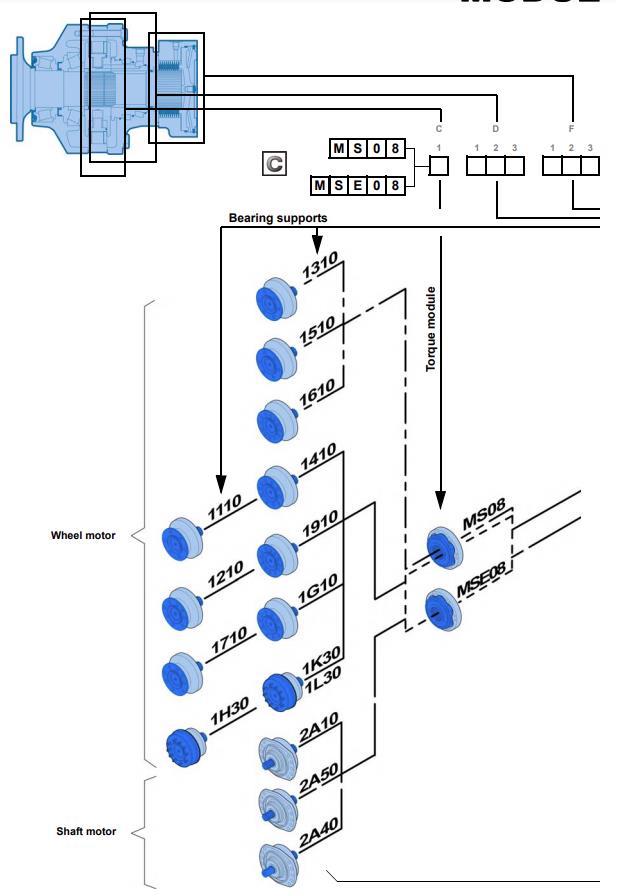

Direct drive motor up to 50 kW ideal for wheel motor or tool drive, from 730 to 1687cc, from 400 to 450 bar max (max torque 10700 N.m) and high speed reached at 200 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry










PROVIDING EXCELLENT SOLUTIONS BY SAIVS™


Speak to one of our experts today to learn more about our products solutions.


Request a Quote

  • Q. Are you a factory or trading company?
  • A. Our company is an integrated set of industry and trade company.
  • Q. How to ensure the quality of your products?
  • A. IS09000, client requirements, product standards, strict inspection to control raw material, production process and final products.
  • Q. What is the MOQ?
  • A. It depends, different products will be different Sample order is acceptable, and some samples can be free.
  • Q. How long do you need the delivery time?
  • 1)Supply within 5 -10 days (If products are in our stock list). 2)Customized products need to be calculated according to the quantity.
  • Q.What 's your payment terms?
  • A. T/T, L/C
  • Q.How can we get your price ?
  • A. We need below information to quote for you: 1. Product Name 2.technical parameter 3. Dimension 4. identity
