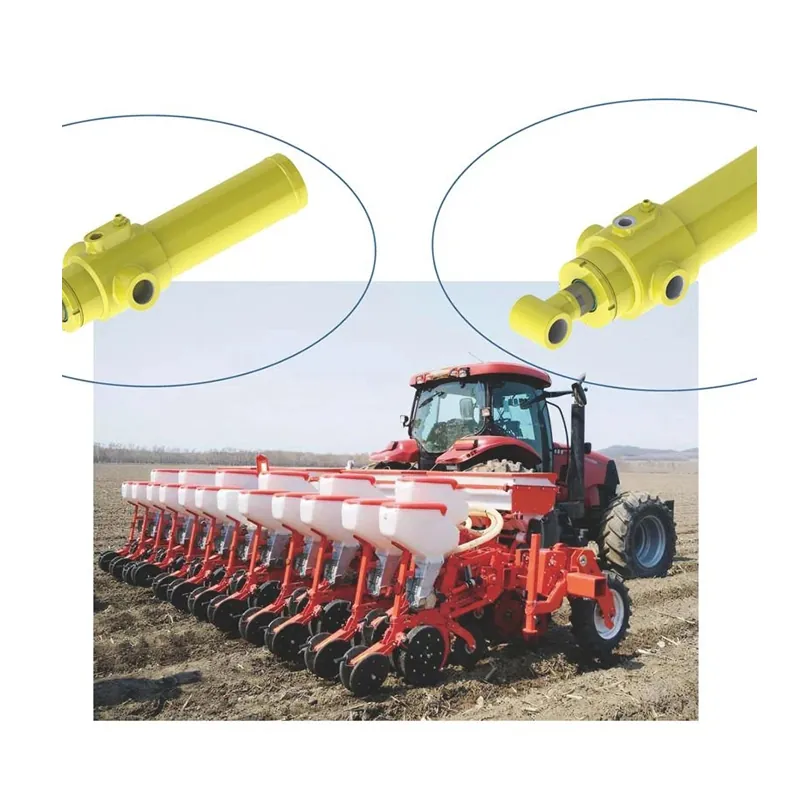

Hydraulic cylinder for Seeder

Working pressure:  Can be customized

Material: Aluminum, Cast Iron, Stainless Steel

Bore Size: 40mm--320mm,Customizable

Shaft Diameter: 20mm--220mm,Customizable

Stroke Length: 30mm--14000mm,Customizable

Color: Customizable

Application: Agricultural

Minimum Order：1 Pieces

Supply Ability：1500 Pieces/ Month

Overview:

hydraulic cylinders are a key component in many agricultural machines, including seeders.

They are used to provide the power and control needed to open and close the seed hopper, raise and lower the seed tubes,

and adjust the depth of the seed bed.

Features:

1. Advanced and reliable sealing system. Adopts imported sealing brand, which has the characteristics of high-speed wear resistance and long service life.

2. The cylinder barrel is made of high-strength cold-drawn material, and the welding structure is reliable,

which improves the overall strength of the cylinder.

3. The piston rod adopts an advanced electroplating process and with salt spray test grade 9/96 hours,

to enhance the anti-corrosion and wear-resisting performance.

4. Adopt forged shafts and lugs to extend service life of connecting parts.

5. The cylinder adopts multiple anti-loosening structures to ensure the reliable operation of each component without falling off.

Product Design:

-Optimize the structure of the hydraulic cylinder to reduce weight and improve efficiency.

-Identify potential areas of stress and fatigue to improve durability.

-Validate the operation of the hydraulic cylinder under different conditions.

Working Principle:

A hydraulic cylinder is mainly composed of a cylinder, a piston, seals, and a cylinder head.

When hydraulic oil enters one side of the cylinder and pushes the piston to move to the other side,

the hydraulic cylinder will extend. When hydraulic oil is discharged from the other side of the cylinder,

the piston will move in the original direction and the hydraulic cylinder will shorten.

Application:

Agriculture: Hydraulic cylinders are used in agricultural seeders to open and close the seed hopper, raise and lower the seed tubes,

and adjust the depth of the seed bed.

Construction: Hydraulic cylinders are used in construction equipment, such as excavators, bulldozers, and backhoes, to lift, move,

and position heavy objects.

Manufacturing: Hydraulic cylinders are used in manufacturing machinery, such as presses, stamping machines, and conveyors,

to provide power and control.

Mining: Hydraulic cylinders are used in mining equipment, such as dump trucks, loaders, and excavators, to move and load materials.

Oil and gas: Hydraulic cylinders are used in oil and gas equipment, such as drill rigs, pumping stations, and valves, to control the Flow of fluids.

Power generation: Hydraulic cylinders are used in power generation equipment, such as turbines, generators, and valves, to control the flow of fluids.
