P40/P80 Hydraulic Directional Control Valves

Function:Directional Control Valve

Spools range:1-8 spool

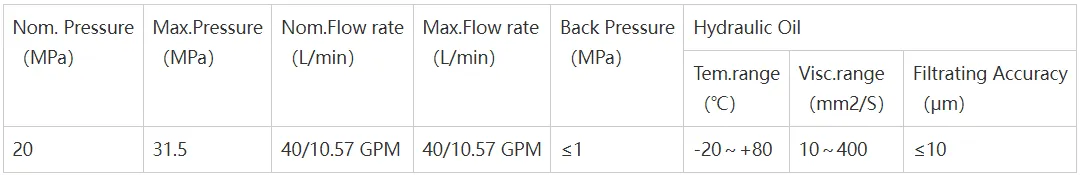

Nom.Pressure(MPa):20

Max.Pressure(MPa):31.5

Max.Flow rate(L/min):40/10.57 GPM,80/21.13 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1 Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

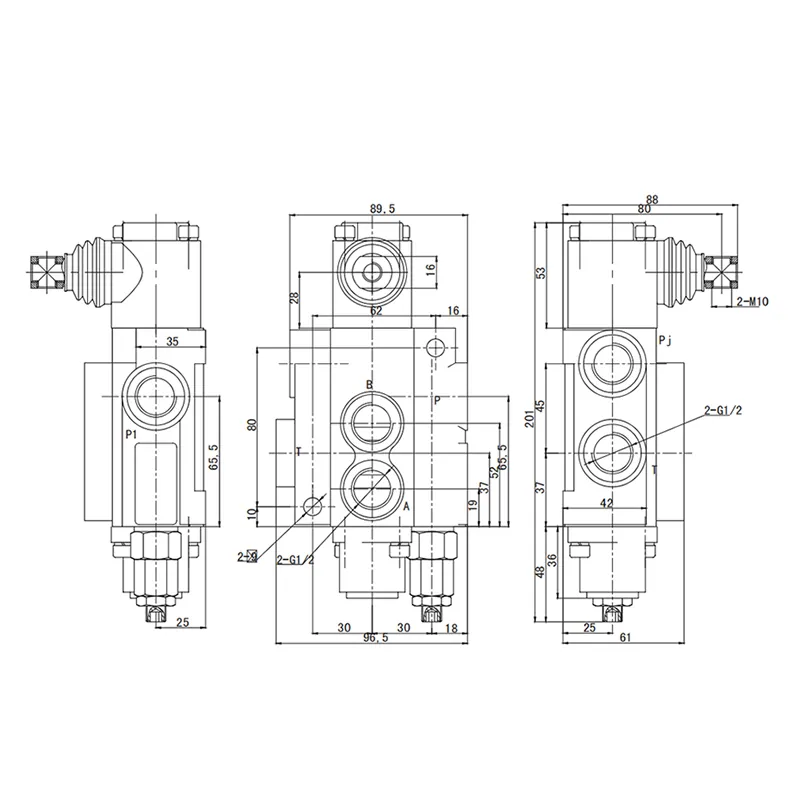

P40 hydraulic directional control valves

P40 series integral multiway valve is a kind of middle and high pressure integral

multiway valve introduced from Europe by our company. The valve can be equipped

with overflow valve and one-way valve according to customers' requirements.

The relief valve can adjust the pressure and the one-way valve can prevent the oil flowing backwards reversing.

The valve slide valve function has A,O, P, Y and so on, may arbitrarily combine,

the reversing handle has two kinds of installation forms, facilitates the different

directions the operation, this valve USES the parallel or the series oil circuit,

the design has the pressure to send the outlet to connect with other hydraulic pressure

components to provide the power source. Through the special design sealing way,

causes the valve sealing performance to be remarkable. The valve is widely used in forklift,

sanitation vehicles, small loader and other construction machinery hydraulic system.

Directional control valves perform only three functions:

1.Stop fluid flow

2.Allow fluid flow

3.Change direction of fluid flow.

Feature

1. P40 series valves with middle-high pressure monoblock construction is developed based on Europetechnology.

2. Inner check valve.The check valve inside the valve body is to insure the hydraulic oil not to beretumed.

3. Inner relief valve:The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

4. Oil Way:Parallel circuit,power beyond option.

5. Control Way:Manual control,pneumatic control,hydraulic and electric control for optional.

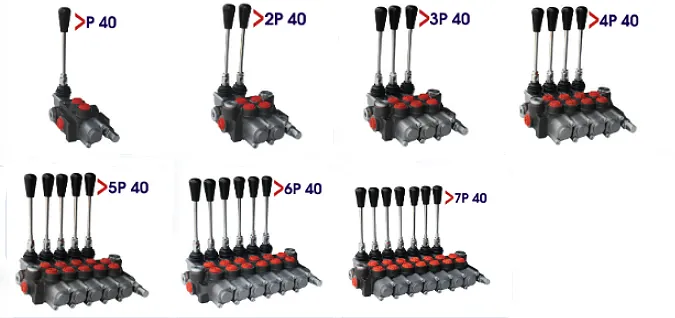

6. Valve construction:monoblock construction,1-7 levers.

7. Spool Function:O,Y,P.A.

8. Option;Hyoraulic lock is available on A and B port.

9. Available with manual,pneumatic control,electric and pneumatic control,hydraulic and electric control and etc.

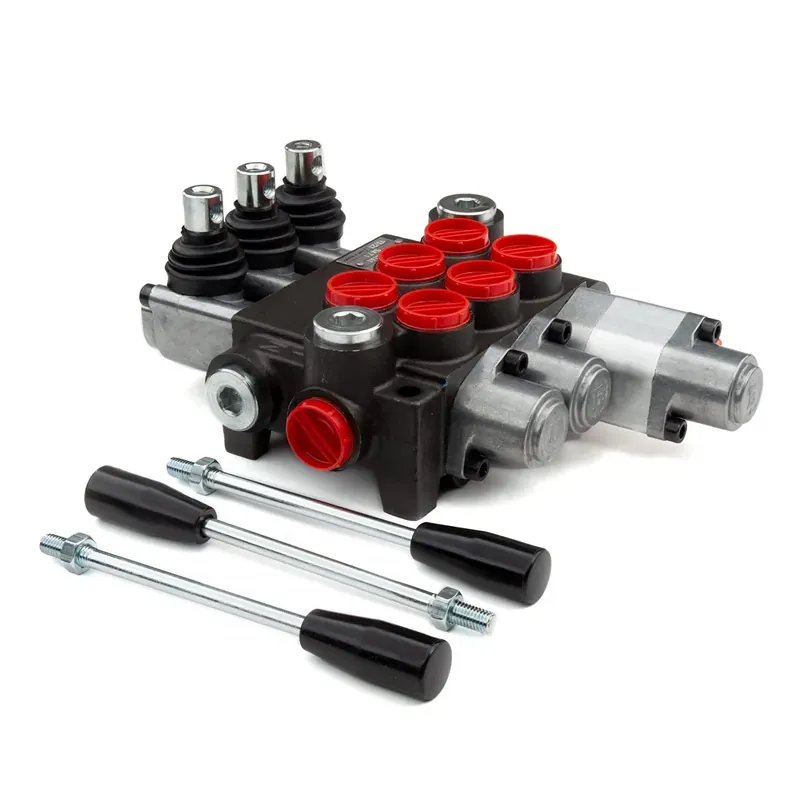

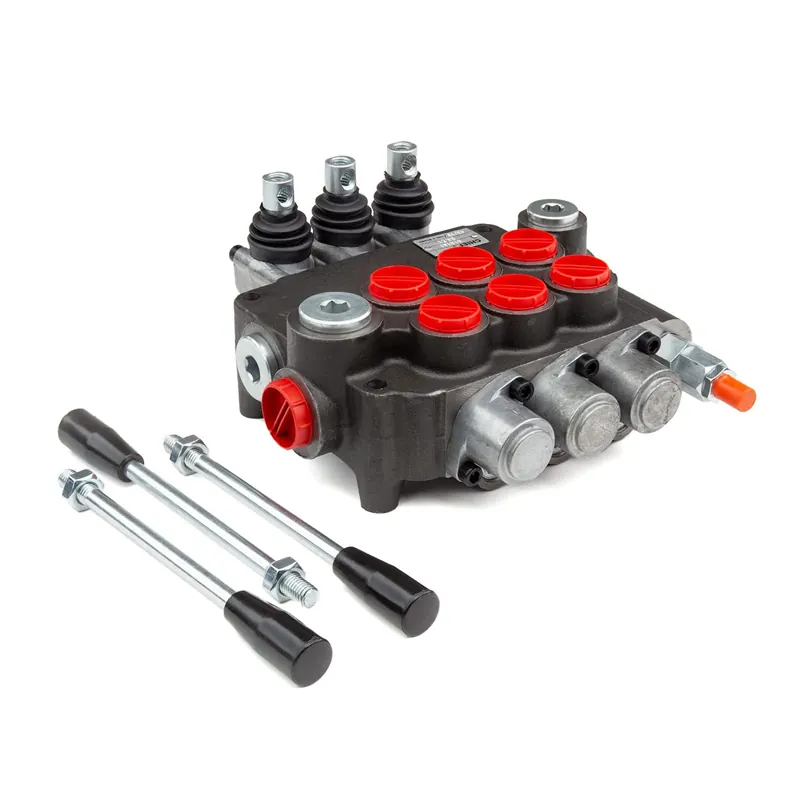

P80 Hydraulic Directional Control Valves

P80 Series monoblock directional control valves use for hydraulic control

ла80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300.

Plungers are made of carburized steel with hard chrome plating.

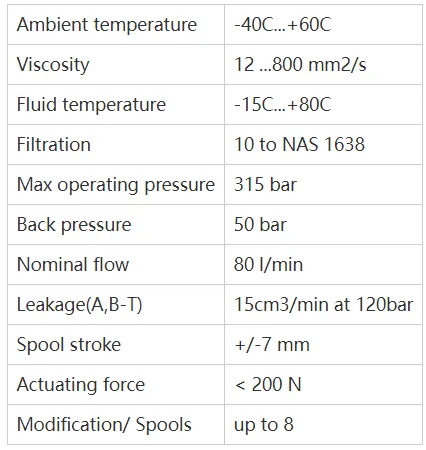

Specifications

Our 2 spool directional control valve for double-acting hydraulic rams has 21 GPM, 4-way 3 pos spring center,

SAE 10 inlet and work ports and SAE 12 outlet ports.

This Hydraulic flow control valve has 4-way valving, adjustable 1500 with 3625 PSI.

Versatile

This series has a 3 position, 4-way valving that allows an actuator to open and close.

This 2 spool control valve can be used in any hydraulic circuit.

Precise Flow

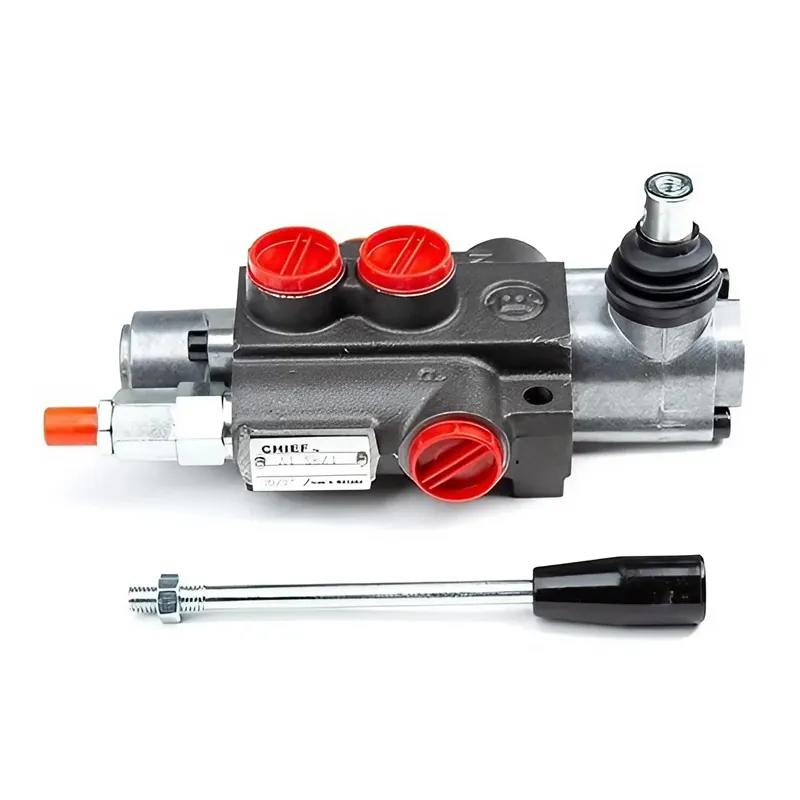

Simple and compact, the hydraulic joystick valve has one spool with a 21 GPM flow

rate that precisely controls the direction of the flow of hydraulic fluids.

This plow valve has a wide range of applications, including in log splitters.

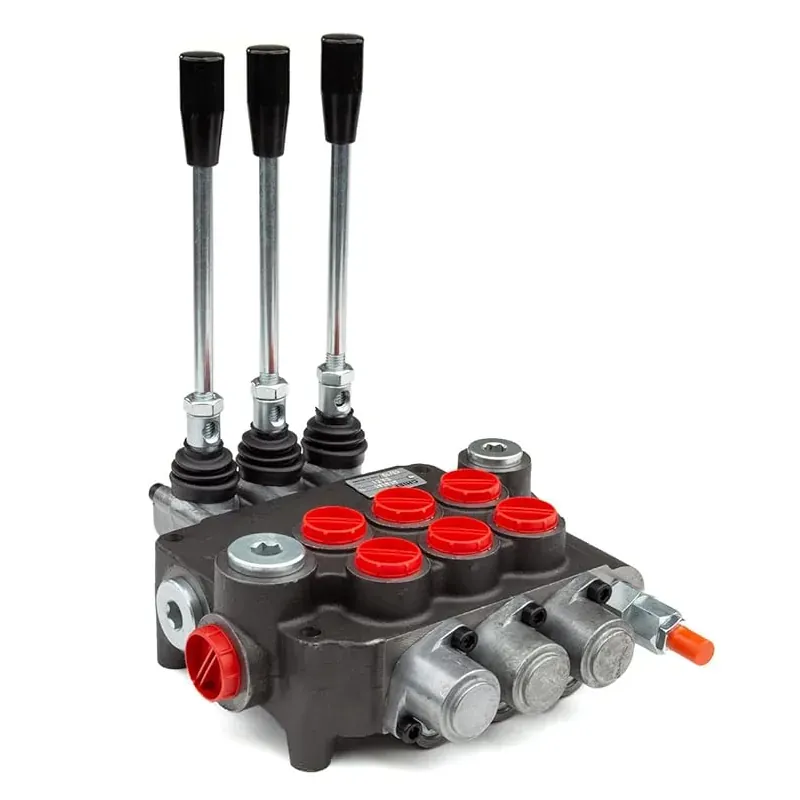

Manual Control

This high-pressure control valve comes with a joystick lever actuator for controlling the spool.

You can control the log splitter valve manually, without an external, additional control system.

Tandem Center

This adjustable relief valve is equipped with a spring tandem center. Since the fluid directly flows back to the hydraulic

tank the hydraulic orbit motor prevents overheating and reduces noise during operation.

Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;

2. Work group number can be added according to demand, 7 spools at most.

3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;

4. Series-parallel connection structure and external load retaining valve ensure that

the actuating mechanism with higher load will not fall in operation.

5. Modules with different functions on the valve group can realize the switchover between

single and dual pumps to improve working efficiency and save energy consumption.

The distributor is fixed with two bolts M8
