Rexroth Vane Pump Failure to Start: Causes and Troubleshooting Methods

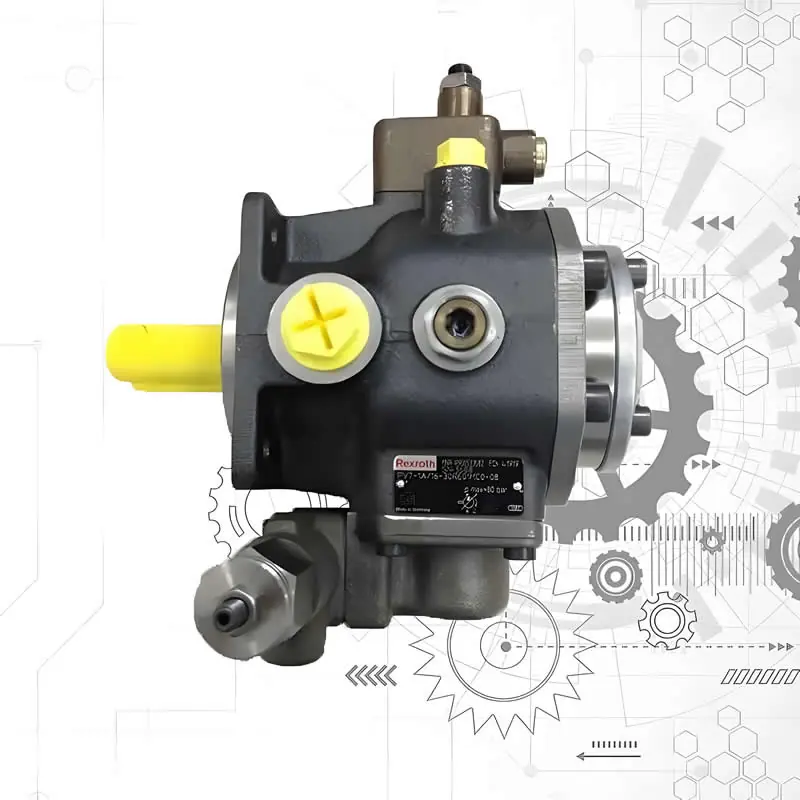

rexroth vane pumps are widely used in hydraulic systems, but sometimes users encounter a situation where the pump suddenly fails to start.

This can be frustrating, especially when the root cause is unclear.

Understanding the potential reasons behind this issue and implementing effective troubleshooting methods can help restore the pump’s functionality efficiently.

Below, we analyze the key factors that may cause a Rexroth vane pump to fail to start and provide corresponding solutions.

1. Power Supply Issues

A common reason for pump failure is related to the power system. Possible causes include:

• Battery problems: Insufficient power supply or open circuit faults such as incorrect wiring or disconnection.
• Starter motor failure: Damage to the starter motor or its gear mechanism.

Troubleshooting:

• Check the battery voltage and charge or replace if necessary.
• Inspect wiring connections and ensure there are no loose or corroded terminals.
• Test the starter motor and repair or replace it if defective.

2. Fuel Supply System Malfunction

The pump may fail to start due to fuel system issues such as:

• Air in the fuel line: Trapped air can cause insufficient fuel supply.
• Fuel blockage: Clogged fuel lines or dirty fuel filters.
• Faulty fuel pump components: Damage to the low-pressure fuel pump, plunger, or control valve.

Troubleshooting:

• Bleed the fuel system to remove trapped air.
• Clean or replace clogged fuel filters and fuel lines.
• Inspect and repair the fuel pump and related components.

3. Speed Control System Failure

Incorrect fuel injection timing, improper valve clearance, or incorrect throttle settings may prevent the pump from starting.

Troubleshooting:

• Adjust the fuel injection timing according to manufacturer specifications.
• Ensure proper valve clearance settings.
• Verify that the throttle system is functioning correctly and adjust if needed.

4. Hydraulic System Issues

If the hydraulic system cannot be activated, the following factors might be responsible:

• Low ambient temperature: Extremely cold environments can cause hydraulic oil to become too thick, preventing pump operation.
• Internal mechanical failure: Wear and tear on internal components may lead to pump failure.

Troubleshooting:

• Preheat the hydraulic oil if operating in low temperatures.
• Inspect internal pump components for wear and replace damaged parts.

5. Throttle and Solenoid System Faults

• Throttle control linkage issues: Linkages may be stuck, broken, or disconnected.
• Solenoid malfunction: Shutdown solenoid failure or circuit issues.

Troubleshooting:

• Inspect and lubricate throttle control linkages.
• Test the solenoid for proper operation and check its wiring.

6. Comprehensive Analysis and Final Troubleshooting

To systematically diagnose and resolve Rexroth vane pump startup issues, follow these steps:

• Check the power supply system first.
• Inspect the fuel system for air, blockages, or pump failures.
• Evaluate the speed control and Hydraulic Systems for incorrect settings or mechanical faults.
• Perform necessary repairs or replacements to restore functionality.

By implementing these troubleshooting methods, users can effectively address Rexroth vane pump startup failures and ensure reliable operation.
