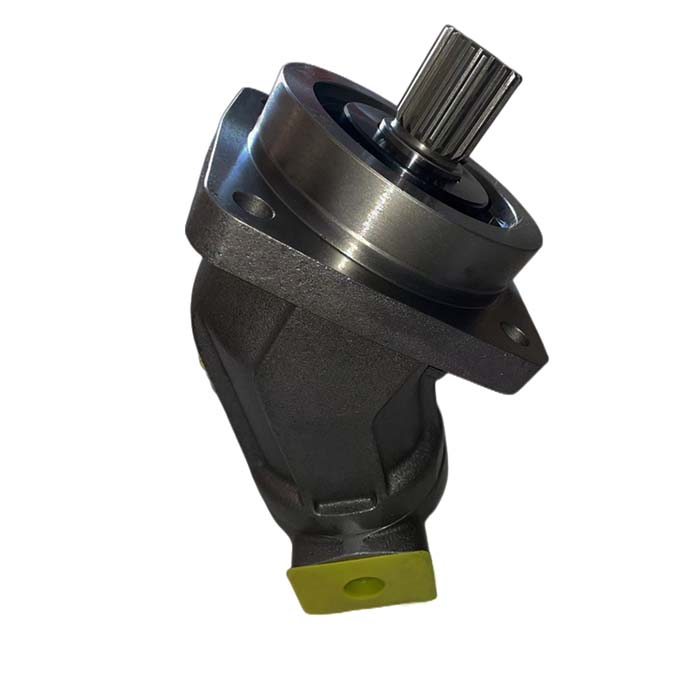

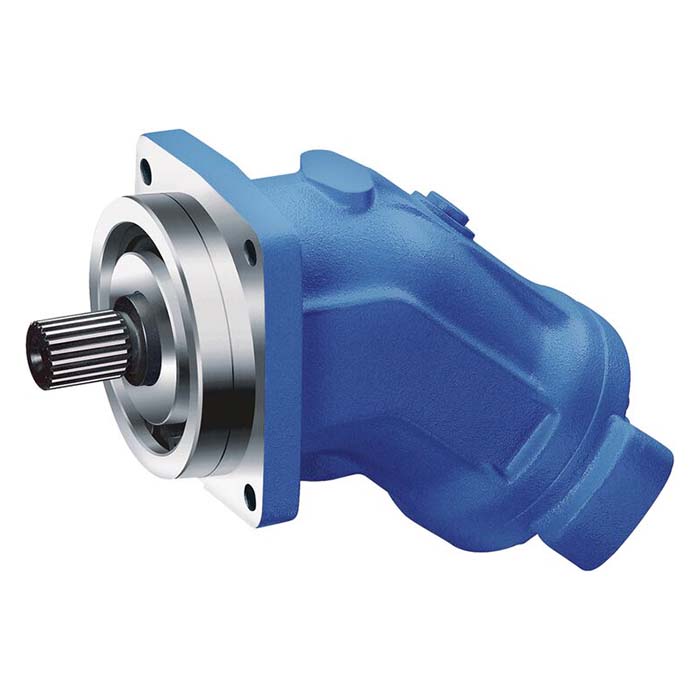

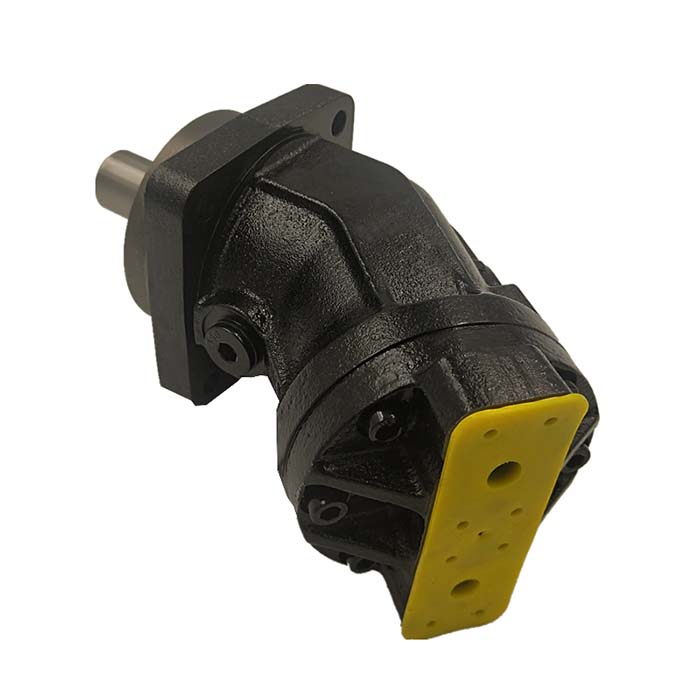

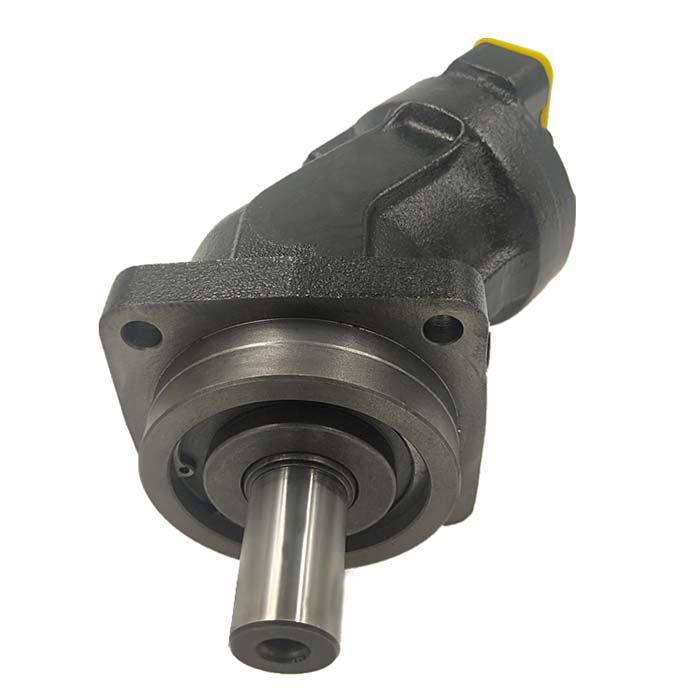

A2FM Rexroth Axial Piston Fixed Motor

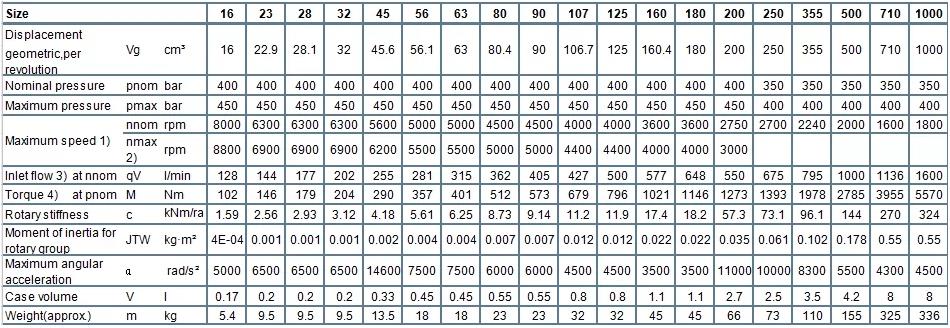

Axial piston fixed motor, A2FM series6x

All-purpose high pressure motor;

Size 5 … 1000,

Maximum pressure up 450 bar;

The axial piston unit is designed to be used in open and closed circuits.

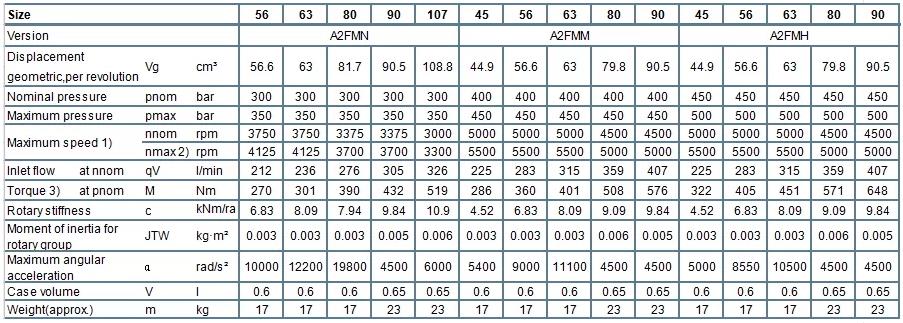

Axial piston fixed motor, A2FM series70

Compact high pressure motor with short installation length;

Size 45 … 107,

Nominal pressure up to 450 bar;

Maximum pressure up 500 bar;

The axial piston unit is designed to be used in open and closed circuits.

A2FM 5, A2FM 10, A2FM 12, A2FM 16, A2FM 23, A2FM 28, A2FM 32, A2FM 45, A2FM 56, A2FM 63, A2FM 80, A2FM 90, A2FM 107, A2FM 125, A2FM 160, A2FM 180, A2FM 200, A2FM 250, A2FM 355, A2FM 500, A2FLM 250, A2FLM 355, A2FLM 500, A2FLM 710, A2FLM 1000;

A2FMN045, A2FMN056, A2FMN063, A2FMN080, A2FMN090, A2FMN107, A2FMM045, A2FMM056, A2FMM063, A2FMM080, A2FMM090, A2FMM107, A2FMH045, A2FMH063, A2FMH056, A2FMH80, A2FMH090, A2FMH107

1) These values are valid at:

for the optimum viscosity range from vopt = 36 to 16 mm2/s

with hydraulic fluid based on mineral oils

2) Intermittent maximum speed: overspeed for unload and overhauling processest, t < 5 s and Δp < 150 bar

3) Restriction of input Flow with counterbalance valve

4) Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"

1) These values are valid at:

for the optimum viscosity range from vopt = 36 to 16 mm2/s

with hydraulic fluid based on mineral oils

2) Intermittent maximum speed: overspeed for unload and overhauling processest, t < 5 s and Δp < 150 bar

3) Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"
