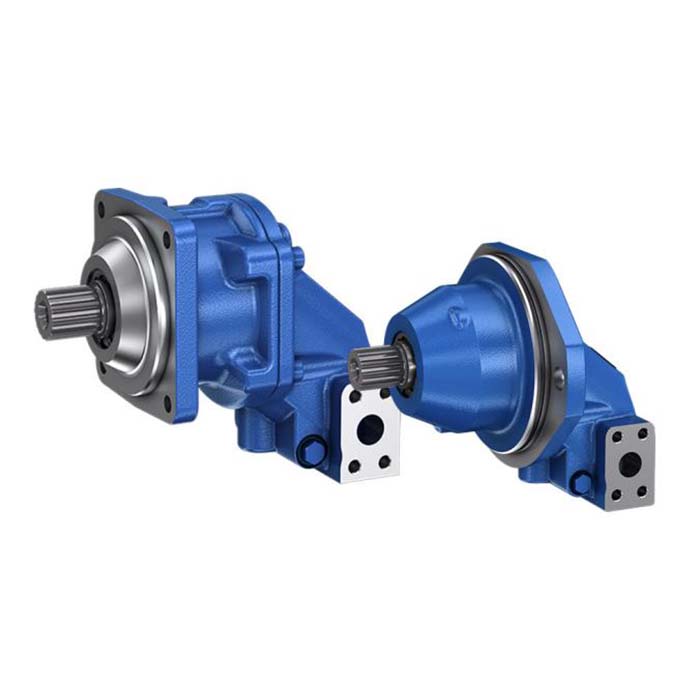

A2FE Axial piston fixed motor

Compact high pressure motor for integration in mechanical gearboxes

Size 23 … 180

Nominal pressure up to 450 bar

Maximum pressure up to 500 bar

Open and closed circuits

3 pressure ranges to fit to different customer requirements and applications

Space-saving construction due to recessed mounting flange

Very high power density

Very high total efficiency

High starting efficiency

Optional with integrated flushing valve

Robust 40° bent-axis technology

    Fixed motor with axial tapered piston rotary group of

bent-axis design, for hydrostatic drives in open and

closed circuits

    For use in mobile and stationary applications

    Far-reaching integration of the plug-in version in

mechanical gears due to recessed mounting flange

located in the center of the case

(extremely space-saving construction)

    Easy to install, simply plug the plug-in version into the

mechanical gearbox

    The output speed depends on the Flow of the pump and

the displacement of the motor.

    The output torque increases with the pressure

differential between the high-pressure side and the

low-pressure side.

    Finely graduated sizes permit far-reaching adaptation to

the drive concerned

    High power density

    Small dimensions

    High total efficiency

    Good starting efficiency

    Optional with integrated flushing valve
