Five Major Components Of The Hydraulic System

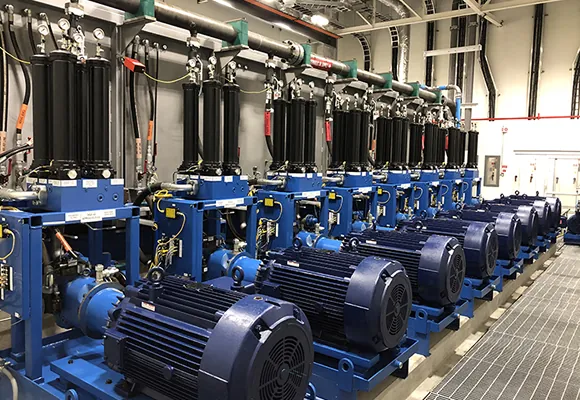

1. Hydraulic power unit

The hydraulic power unit typically consists of a hydraulic pump, motor, and connecting components. The hydraulic pump compresses low-pressure fluid into high-pressure fluid, enabling it to transmit power. The motor provides the necessary driving force for the hydraulic pump, and the connecting components ensure a tight connection between the motor and the pump.

2. Actuators

Actuators are critical components of the hydraulic system, converting high-pressure fluid into mechanical energy to control and drive machinery. Key actuators include hydraulic cylinders and hydraulic motors, selected based on the specific needs and characteristics of the machinery.

3. Control Elements

Control elements regulate and control the hydraulic system's operating conditions and processes to meet the machinery's requirements. These include pressure control valves, flow control valves, and directional control valves, which can be controlled through automation, electrification, or digital means.

4. Auxiliary Components

Auxiliary components ensure the hydraulic system operates correctly and efficiently. These include the oil tank, filters, cooler, and pressure gauge, which contribute to the system's safety, reliability, and longevity.

5. Hydraulic Transmission Lines

Hydraulic transmission lines are responsible for conveying hydraulic energy and control signals within the system. This includes high-pressure hoses, pipes, and fittings, designed to withstand high pressure, high temperature, and high-speed operating environments, ensuring high strength, high sealing, and high reliability.

In summary, a hydraulic system is composed of the hydraulic power unit, actuators, control elements, auxiliary components, and hydraulic transmission lines. These parts work together to form a stable and reliable hydraulic transmission system that provides effective power and control for machinery.
