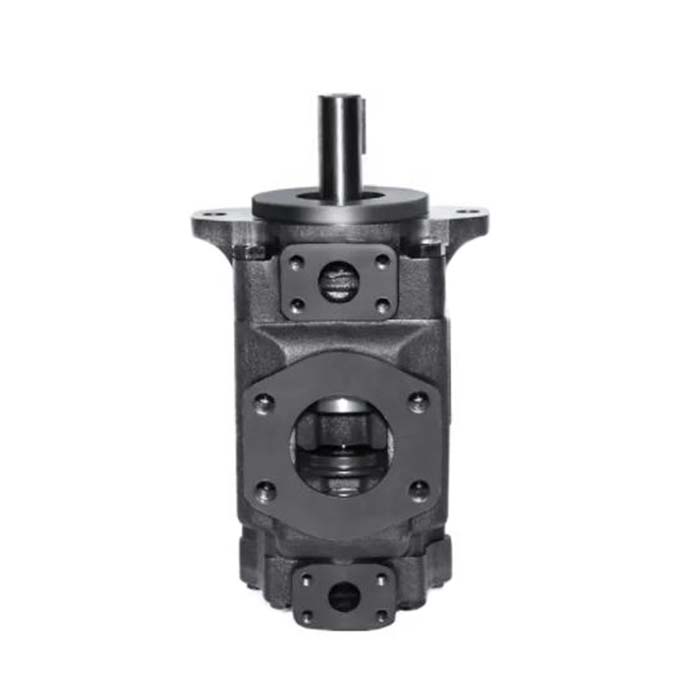

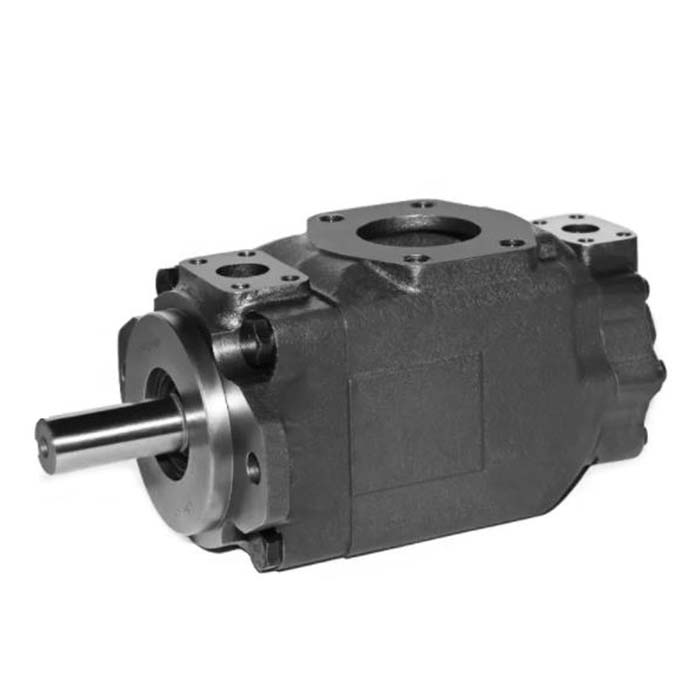

t6dc ultra-low pulse double hydraulic vane pump

T6DC Ultra-Low Pulse Double Hydraulic Vane Pump,hydraulic pump Price List,China Hydraulic Pump

Place of Origin:Zhejiang, China

Pressure:High Pressure

Structure:vane pump

Usage:Oil

Power:Hydraulic

Application:cutting,plastic,leather,pressure,engineering,metallurgical machinery

Fuel:hydraulic oil

Theory:Rotary Pump

Standard or Nonstandard:Standard

Weight:38.6 KG

Warranty:1 Year

Application Specification:

Initial Startup Checks:

Check the accuracy of design and installation of hydraulic station:

♦ Make the distance between inlet and outlet as long as possible.

♦ The pipe orifice of inlet and outlet should be slope and the section eagle should be greater than or equal to 45°, in order to increase passage section ,slower velocity, recommend velocity in inlet is between 0.5m/s and 1.9m/s. and in outlet is below 6m/s.

♦ Confirm the oil ports are below the oil level in fuel tank in the worst-case scenario (example: all of hydraulic cylinder pistons are extending to the extreme position),

♦ Specifications of the air filter should be threes greater than the maximum return Flow.

♦ Set the release valve for exhaust on oil returning pipe; and you can also slightly loosen the joint of pump outlet to vent until there are no bubbles in the oil spill, then you can tighten the joint to produce the same effect.

Notice: This method is suitable for low pressure and you should make sure the pressure will not rise.

Initial start:

♦ Check the accuracy of the location of oil ports.

♦ Pump should vent well when injecting oil.

♦ Inching running the pump for a few seconds, and you should loosen the relief valve on the outlet to reach the minimum pressure.

♦ Do not drive the pump in a high speed and pressure before the check is over.

Shaft&Coupling

Coupling&spline hole

♦ Coupling spline hole should be able to float and automatically, such as coupling halves are rigid coupling, the different axis is less than 0.15mm (TIR), in order to reduce wear and inclination angle of two spline axis deviation < ±0.05/25.4mm;

♦ Spline hole must be lubricated by molybdenum disulfide lithium-based grease or other similar grease.

♦ Coupling demand heat treatment to reach the hardness of 29~45HRC.

♦ The specification of spline hole should meet the one-level standards in SAE-J498b(1971) ,as the coordination is flat root and lateral teeth.

Flat spline shaft

♦ T7, T67 and T6 Series Vane Pumps provide a high strength key, hence you must use it when installing or changing the pump , or you can use a new key whose hardness is 27~34HRC and edge angle is 0.8~1×45° to avoid the circular angle in the key slot when it’ necessary to change keys.

The load of shaft

♦ The construction of requirement of flat spline shaft is the same to the spline shaft’s. This series products is only allowed to bear transmission load, do not apply radial and axial load.
