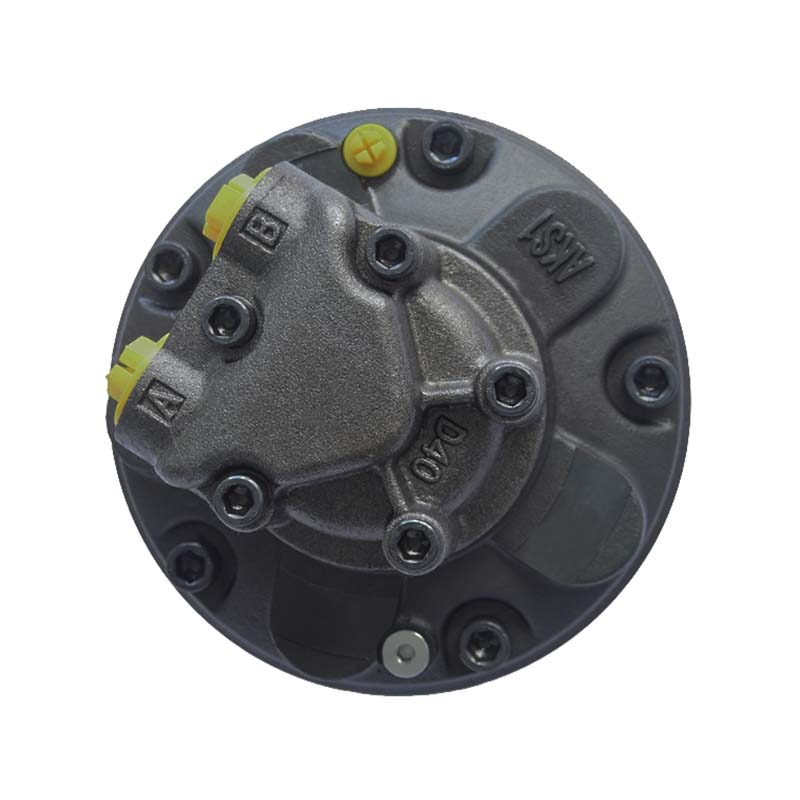

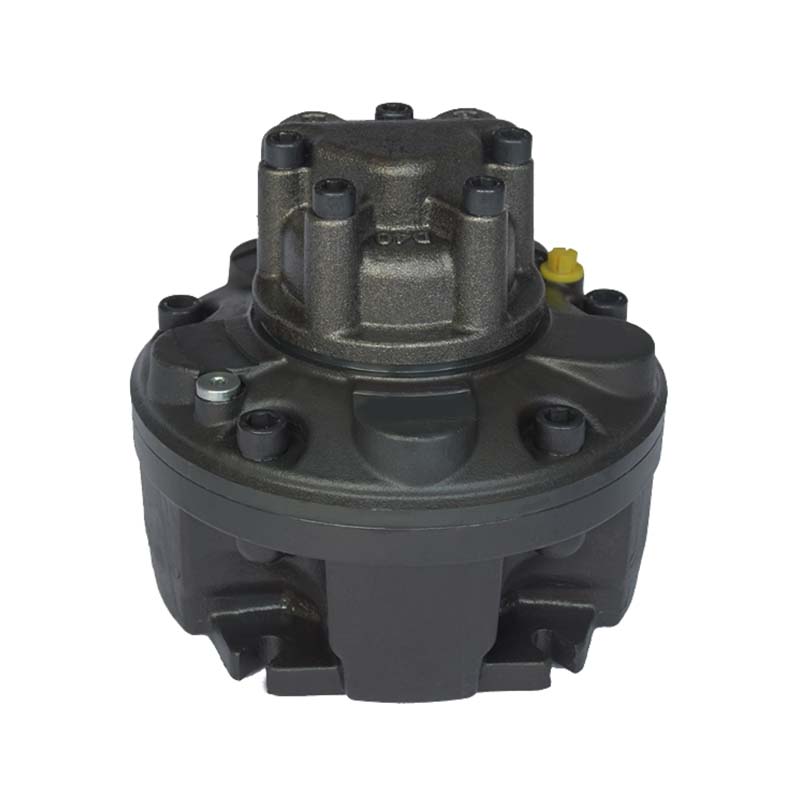

GM05 Radial Piston Hydraulic Motor for Engineering Machine

High 0 rpm and stall torque conditions

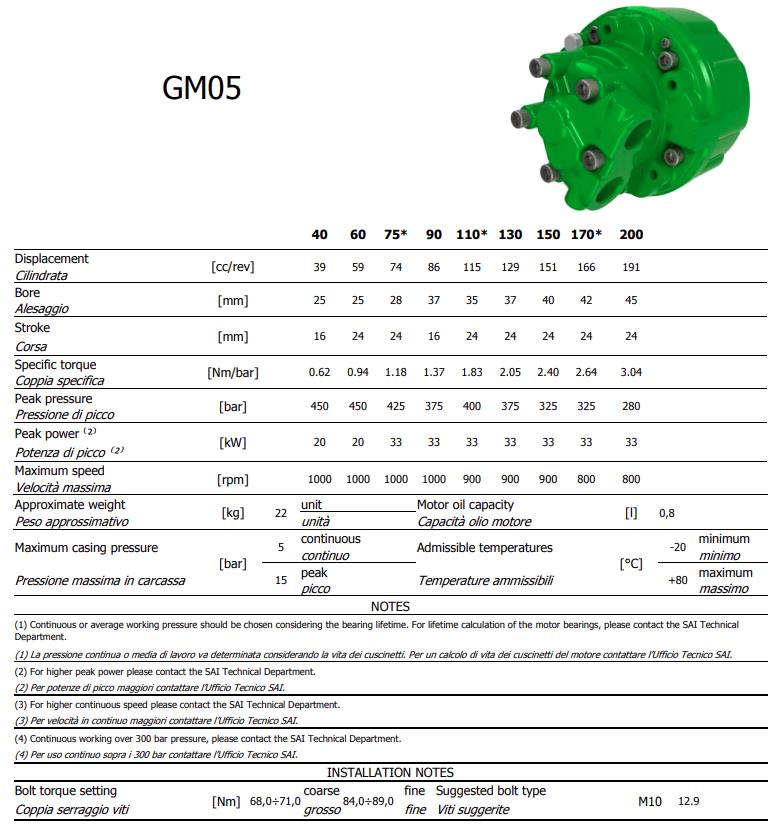

Displacement(in³/rev):2.38 to 11.66

Specific Torque(ft-lb/100 PSI):3.22 to 15.81

Power(HP):44.3

Max.Pressure:31.5 MPa

Manufacturing Process:Casting

Speed:Low Speed

The GM Series is a range of fixed displacement motors with a design resulting from continuous improvement obtained from decades of experience in the field.  High mechanical and volumetric efficiency and excellent cavitation resistance make them ideal products for any circuit that requires reliability, high performance, and speed control.

GM SERIES hydraulic motor

GM series Hydraulic motor is a new type of product of our company, which is based on years practical experience. The design is improved in the foundation on the original technologies.

GM hydraulic motor mainly has the following characteristics:

1.GM series hydraulic motor has such features as: very high mechanical efficiency and comparatively high startup torque(mechanical efficiency of over 0.92 duringstartup).

2.It has very high volumetric efficiency(can be as high as 0.98).

3.The product has perfect stability at low speed. It can stably run at 10r/min working condition and has big speed regulation range.

4.This series of hydraulic motor can run at pump working condition.

5.This series of hydraulic motor has high pressure, (the highest pressure can reach 31.5 Mpa)light weight, small bulk and high specific power.

6.It can work reliably and has long life and low noise; the transmission shaft allows endure radial load and the rotational direction is reversible.
