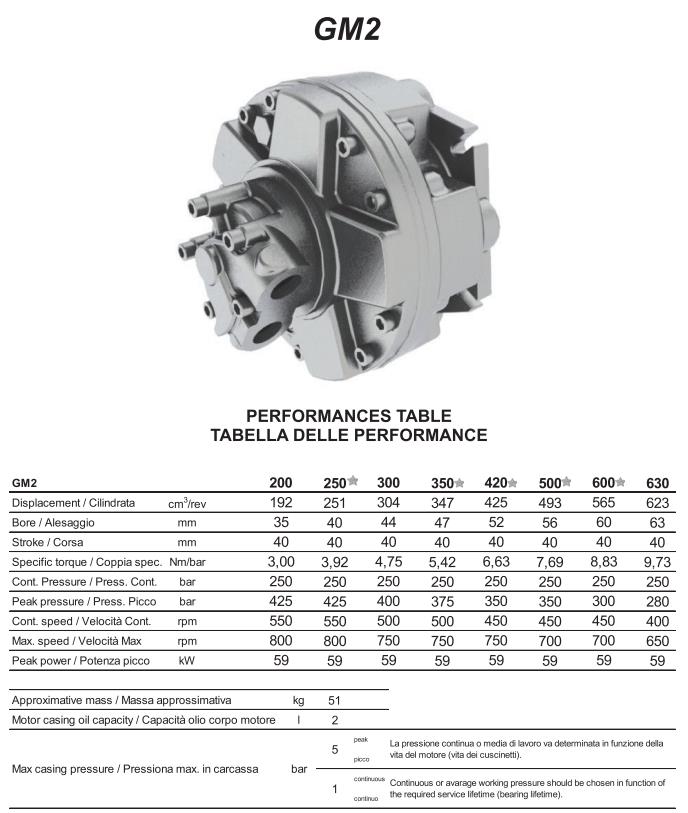

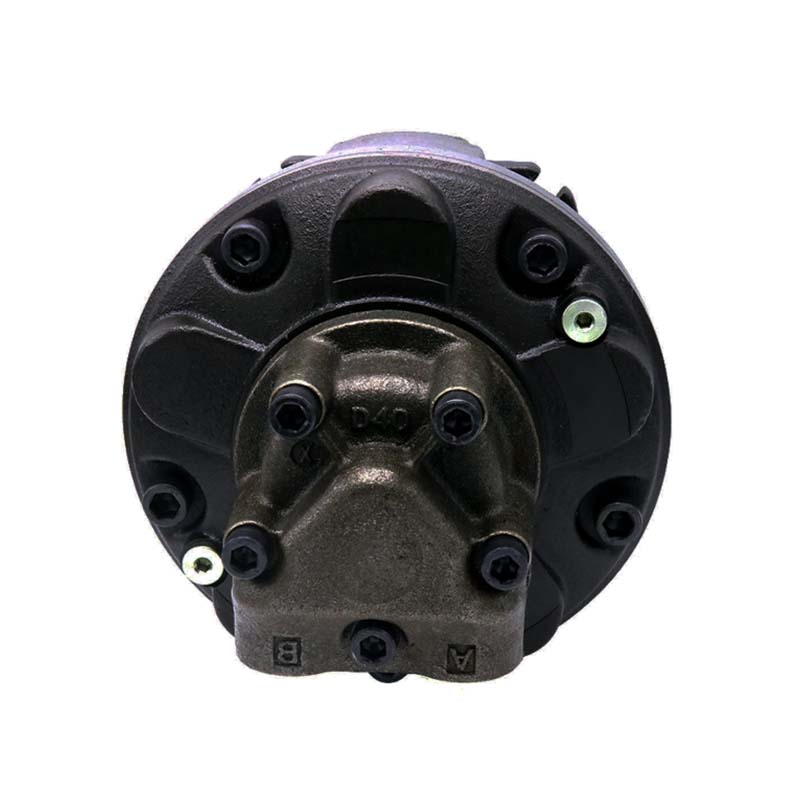

Sai GM2 Radial Piston Hydraulic Motor for Rail Machinery Piston Motor
Sai GM2-2700 Radial Piston Rpm Inner Five Star Hydraulic Motor with Hydraulic Valve and Gear Reducer for Ship Door, Drilling Rig Use
Displacement(in³/rev):11.72 to 38.02
Specific Torque(ft-lb/100 PSI):15.60 to 50.60
Power(HP):79.1
Max.Pressure:31.5 MPa
Manufacturing Process:Casting
Spe
Minimum Order:
Supply Ability:
Sai GM2-2700 Radial Piston Rpm Inner Five Star hydraulic motor with Hydraulic Valve and Gear Reducer for Ship Door, Drilling Rig Use
Displacement(in³/rev):11.72 to 38.02
Specific Torque(ft-lb/100 PSI):15.60 to 50.60
Power(HP):79.1
Max.Pressure:31.5 MPa
Manufacturing Process:Casting
Speed:Low Speed
Description :
The crankshaft design radial piston hydraulic motor, by using static equilibrium structure on the hydraulic motor, reduce friction loss in the process of force, this unit has high mechanical efficiency (> 93%), With oil technology is simple and reliable, sealed performance is good, so it has the high volume efficiency (> 99). Due to the improvement of the organization to minimize friction losses and adopts the imported seal, and low efficiency, stable performance in Grimm/MIN mining can be stable operation, the speed under large scope (1-1000R/MIN).
Main characteristics:
High mechanical efficiency
High volume efficiency
Hhigh torque
low speed
