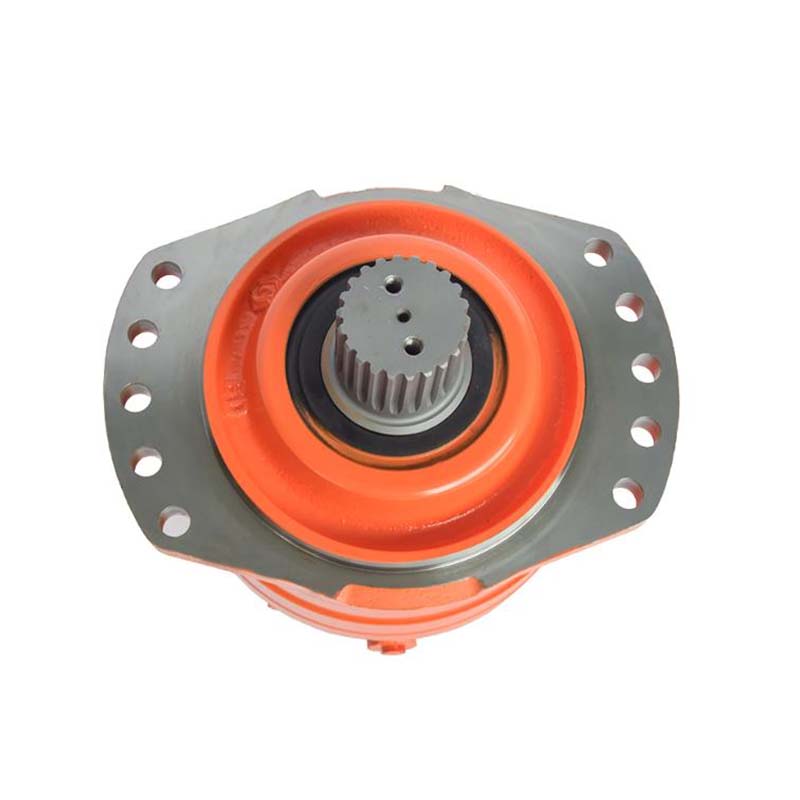

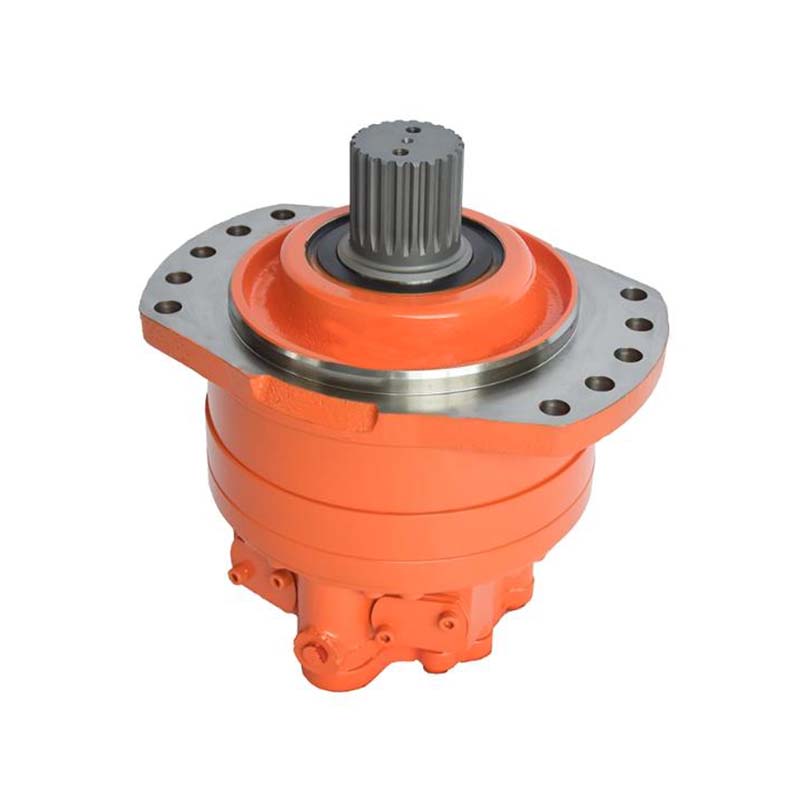

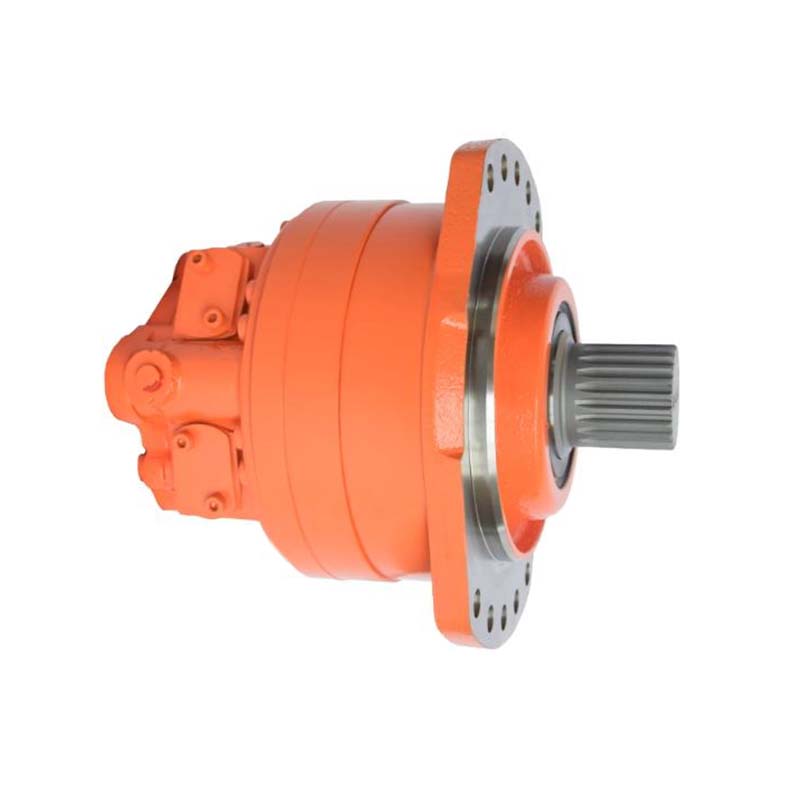

poclain ms05 mse05 radial piston hydraulic motor with/without brake

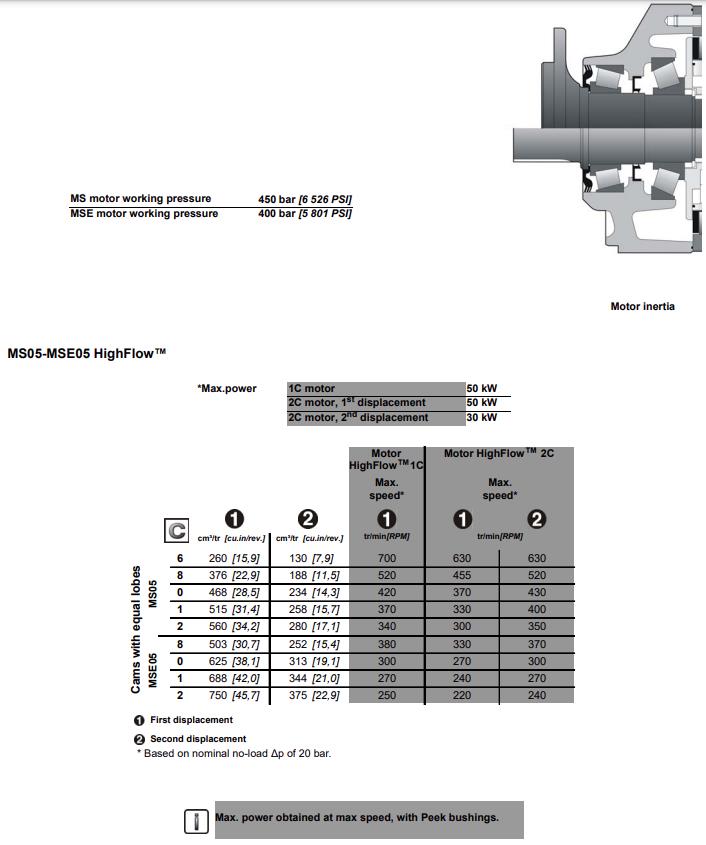

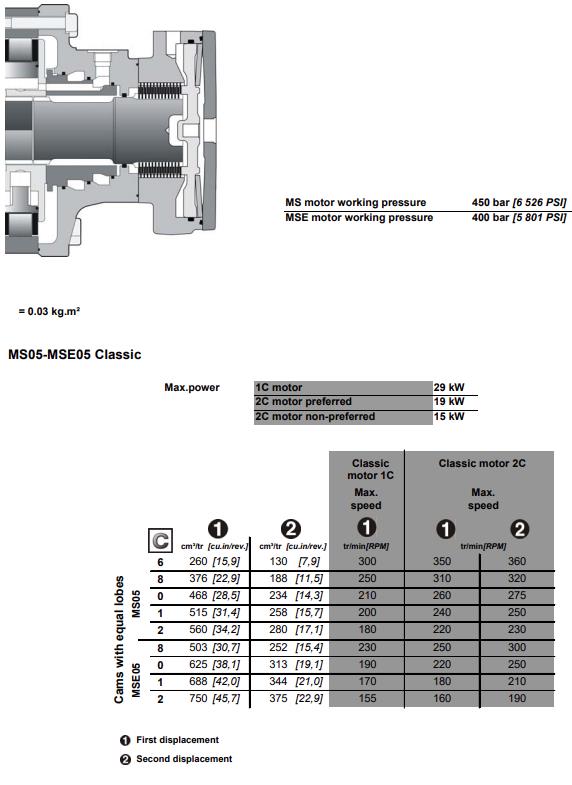

Technical specifications
MS05-MSE05 motor max 750cc, up to 50 kW
MAX. Displacement CM3/REV：750
Power MAX (kW)：50
Power MAX (HP)：67
Torque MAX (Nm at 100 bar)：4770
Torque MAX (lb.ft at 1000 PSI)：3518
Speed MAX (RPM)：700
MAX Pressure（bar）：450
MAX Pressure（psi）：65
Minimum Order:
Supply Ability:
Technical specifications
MS05-MSE05 motor max 750cc, up to 50 kW
MAX. Displacement CM3/REV：750
Power MAX (kW)：50
Power MAX (HP)：67
Torque MAX (Nm at 100 bar)：4770
Torque MAX (lb.ft at 1000 PSI)：3518
Speed MAX (RPM)：700
MAX Pressure（bar）：450
MAX Pressure（psi）：6527
Direct drive motor up to 29 kW ideal for wheel motor or tool drive, from 260 to 750cc, from 400 to 450 bar max (max torque 4770 N.m) and high speed reached at 700 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry.
