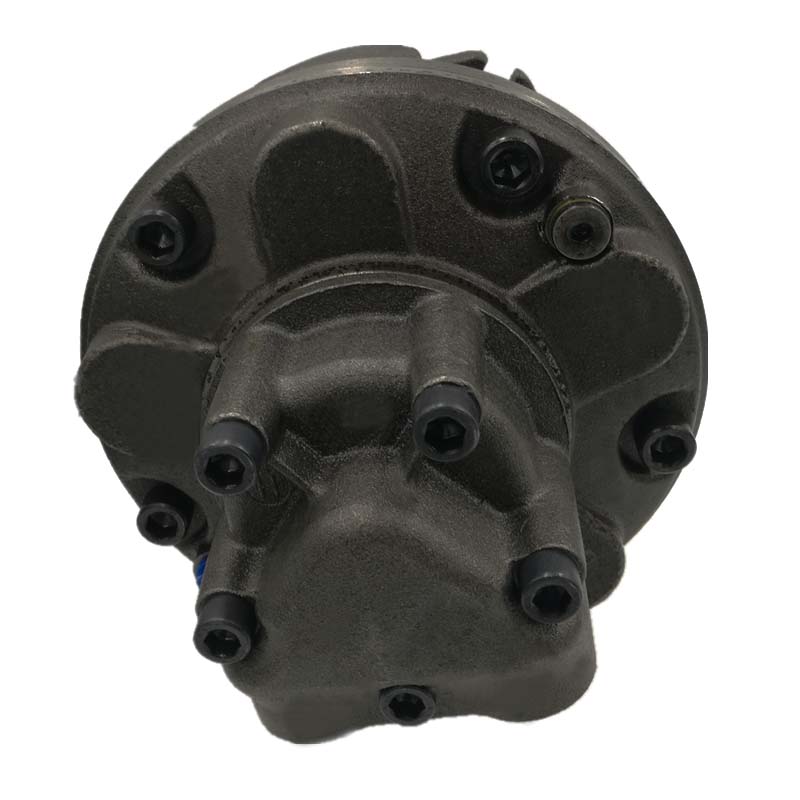

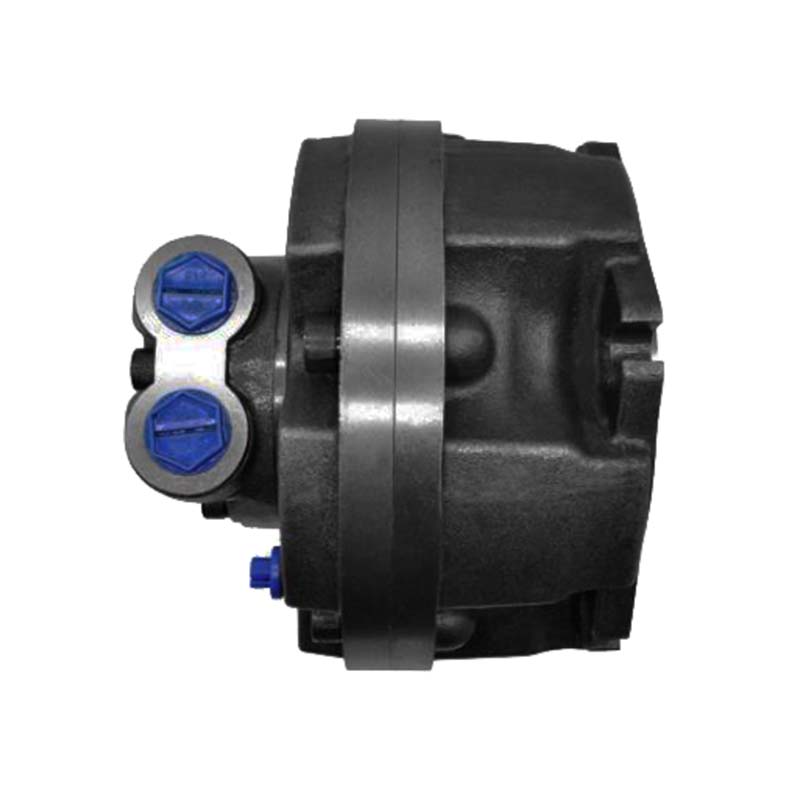

Low Speed Rpm High Torque Hydraulic Radial Piston Motor GM Series of GM7 Motor
Displacement(in³/rev):83.79 to 284.55
Specific Torque(ft-lb/100 PSI):111.25 to 376.94
Power(HP):335.3
Max.Pressure:31.5 MPa
Manufacturing Process:Casting
Speed:Low Speed
Features:
1.
Minimum Order:
Supply Ability:
Low Speed Rpm High Torque hydraulic radial piston motor GM Series of GM7 Motor
Displacement(in³/rev):83.79 to 284.55
Specific Torque(ft-lb/100 PSI):111.25 to 376.94
Power(HP):335.3
Max.Pressure:31.5 MPa
Manufacturing Process:Casting
Speed:Low Speed
Features:
1. High efficiency, small volume, light weight
2. High starting torque, high specific speed range
3. Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. The mounting dimension and more than 80% of internal components can be interchanged with SAI Products.
