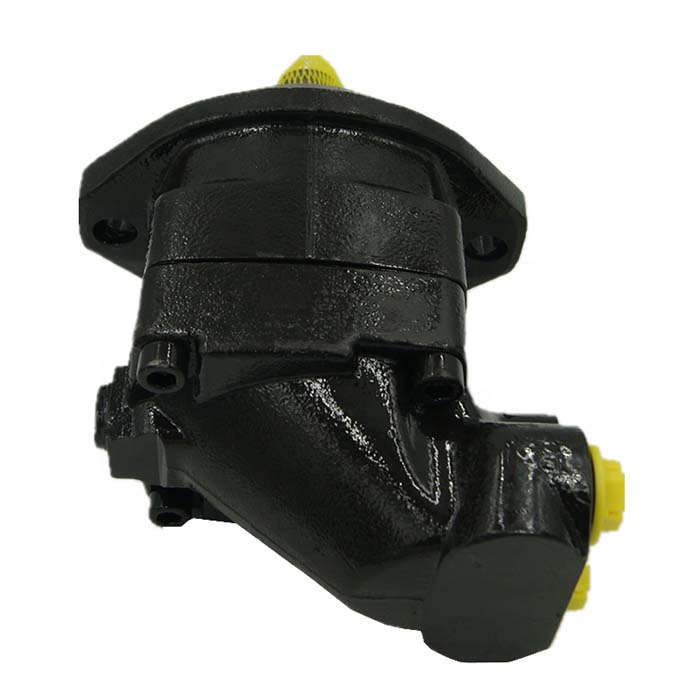

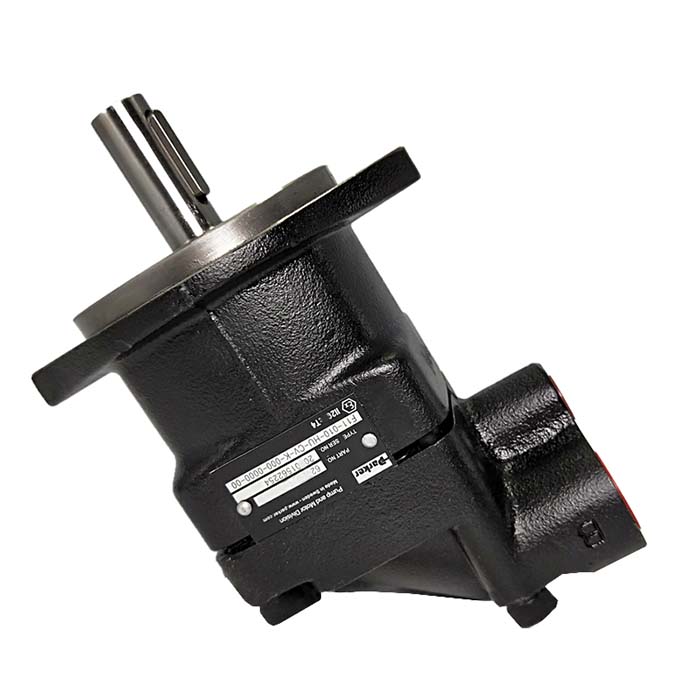

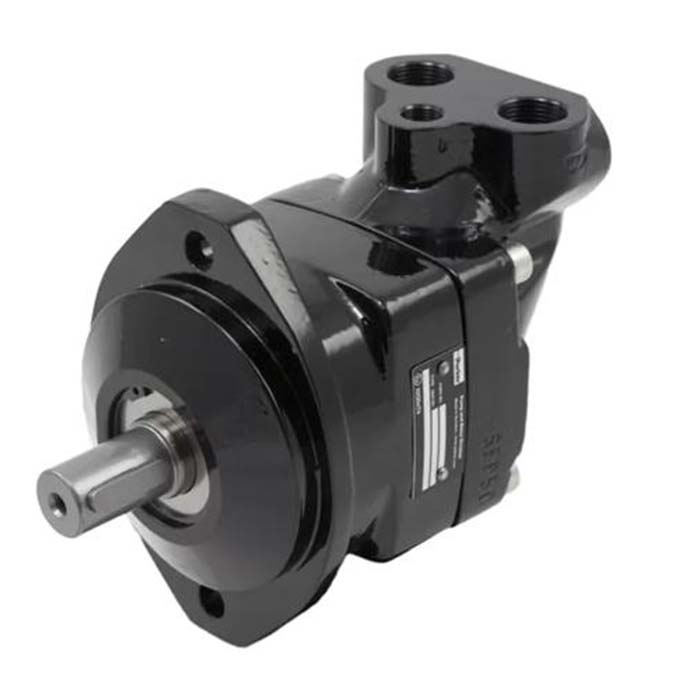

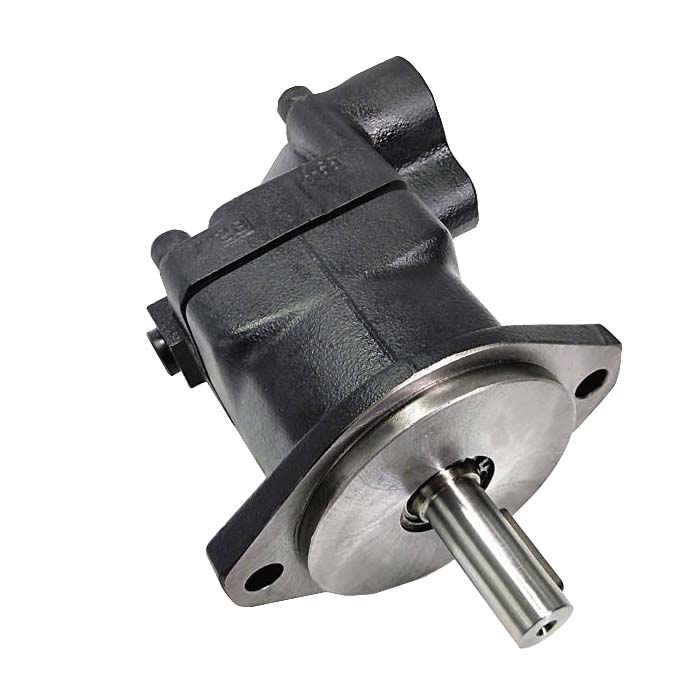

Parker Axial Piston Fixed Motors F11

5out of5 based on5 reviews | Write a review
  • Body Material: Cast Iron

    Fluid Type: Standard Hydraulic Fluid

    Maximum Displacement (Cm3/Rev): 19 (Cm3/Rev)

    Maximum Displacement (In3/Rev): 1.16

    Maximum Flow (Gpm): 17.56

    Maximum Flow (Lpm): 66,5 Lpm

    Maximum Operating Pressure (Bar): 420 Bar

    Maximum Operating Pressure (Psi): 6090<

    Minimum Order:6 Pieces

    Supply Ability:900 Piece/ Month

Body Material: Cast Iron

Fluid Type: Standard Hydraulic Fluid

Maximum Displacement (Cm3/Rev): 19 (Cm3/Rev)

Maximum Displacement (In3/Rev): 1.16

Maximum Flow (Gpm): 17.56

Maximum Flow (Lpm): 66,5 Lpm

Maximum Operating Pressure (Bar): 420 Bar

Maximum Operating Pressure (Psi): 6090

Maximum Speed (Rpm): 4600 Rpm

Maximum Speed (Rpm): 4600 Rpm

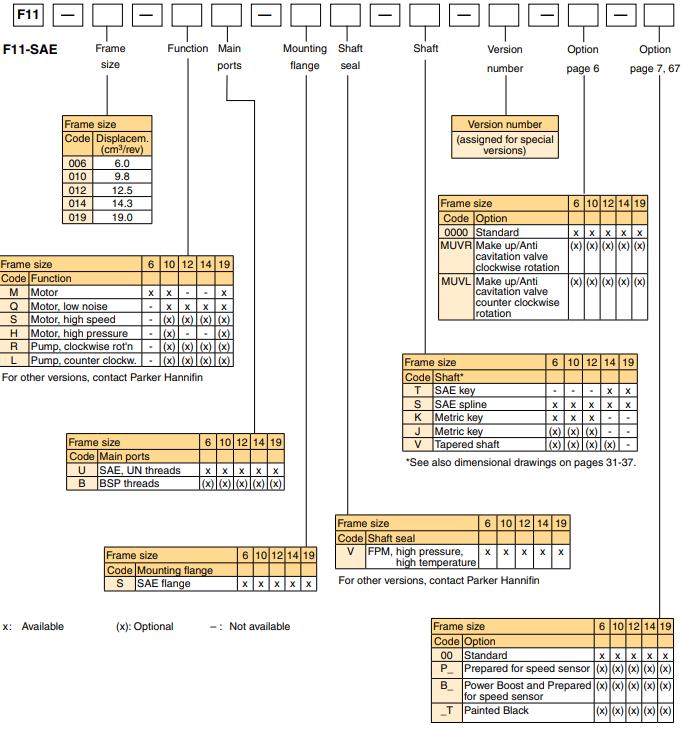

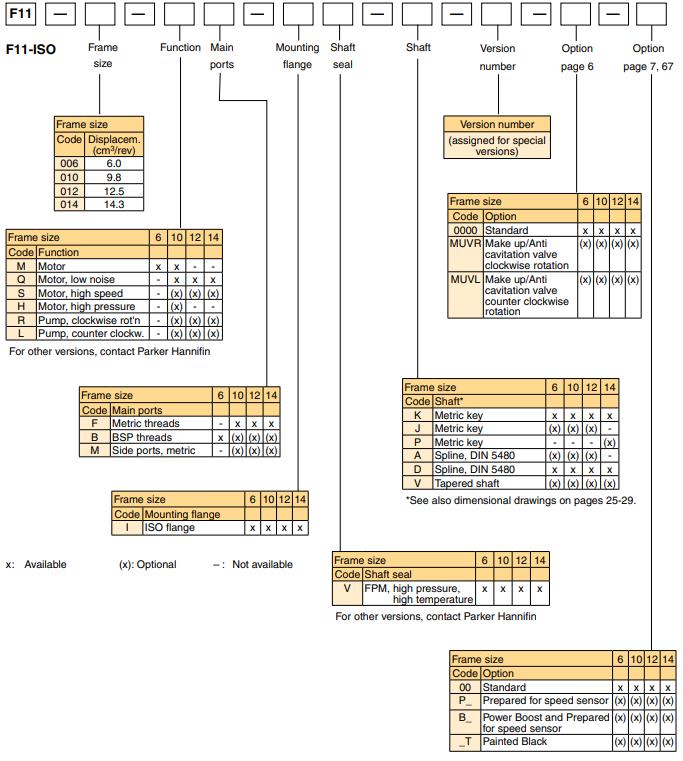

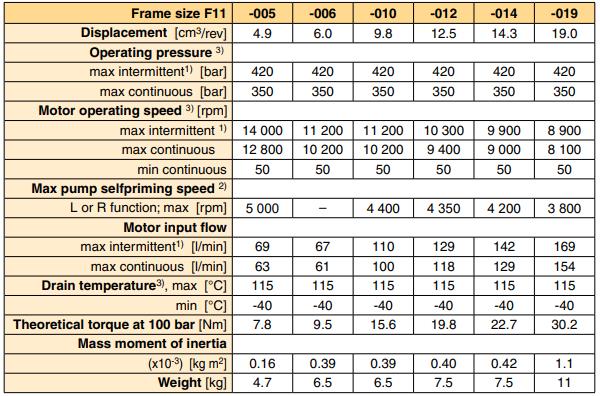

Parker F11 hydraulic motor series is made in Sweden and has operating pressures up to 420 bar (6,100 psi) and speeds up to 14.000 rpm. The F11 motor is a robust design, which are the series of reliable & efficient, bent axis, fixed displacement, heavy-duty motor/pumps, and can be used in numerous applications in both open and closed loop circuits. Sizes from 5-19cc, as F11-005, F11-006, F11-010, F11-012, F11-014, F11-019.





The high efficient Parker bent axis design motors F11, with unique spherical piston concept gives thermal shock resistance. The motors are rated up to 420bar pressure levels, and speeds up to 14000rpm. The well proven gear synchronization and double tapered bearing concept gives a very robust and reliable motor in demanding applications, applicable for both open and closed loop systems.  Combined with our well proven track record of durable motors, we have an outstanding uptime.

Rigorous product testing and continuous product development help to ensure our hydraulic motors operate at optimum efficiency and can perform in the most demanding environments.
