Off-shore Jacking cylinder

Piston diameter: 600 mm

Piston rod diameter: 280 mm

Stroke length: 3150 mm

Function: Lowering / lifiting the legs

Piston rod coating corrosion resistance

Application: Marine & Offshore

Minimum Order：30 Pieces

Supply Ability：3500 Piece/ Month

Warranty:1 Year

Brand Name: SAIVS

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

Overview:

Offshore jacking cylinders are hydraulic cylinders used in offshore cranes. They are used to move the crane's boom up or down,

so the crane can lift or lower heavy objects. Offshore jacking cylinders must be able to withstand the harsh

offshore environment, including salt water, corrosion, and vibration.

Features:

- Benefit from cylinder designs grounded in extensive knowledge and field experience spanning decades, ensuring optimal performance and reliability.

- Extremely high wear and corrosion resistance, ensuring longevity even in challenging environments.

- Enjoy superior performance and minimal internal leakage with high-quality seal and bearing configurations,

meticulously designed to meet stringent standards for reliability.

Product Design:

Body: The body is the main part of the offshore jacking cylinder, and it is made of high-strength steel or alloy.

Piston rod: The piston rod is the moving part inside the body, and it is made of high-strength steel or alloy.

Seals: Seals are used to prevent hydraulic oil leaks.

Valves: Valves are used to control the flow of hydraulic oil.

Working Principle:

The working principle of offshore jacking cylinders is based on hydraulic principles.

When hydraulic oil is pumped into the body, the piston rod moves up. When hydraulic oil is drained from the body, the piston rod moves down.

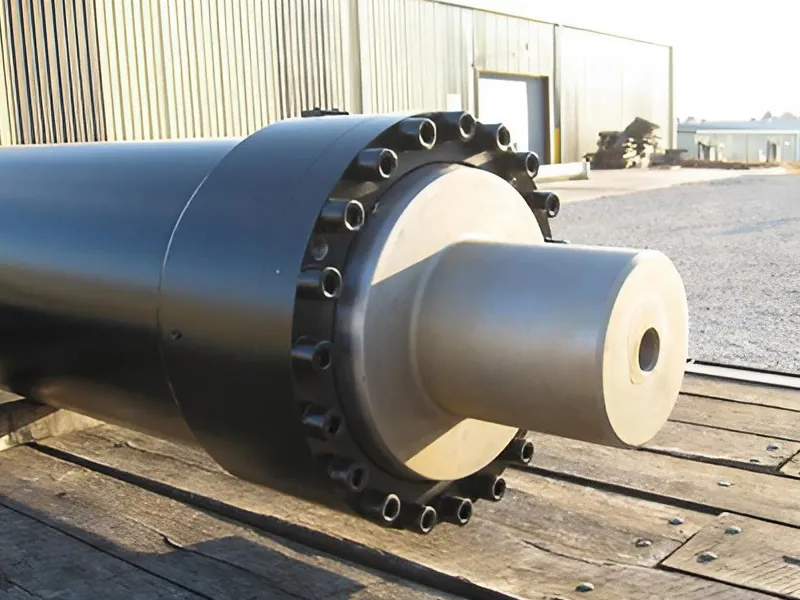

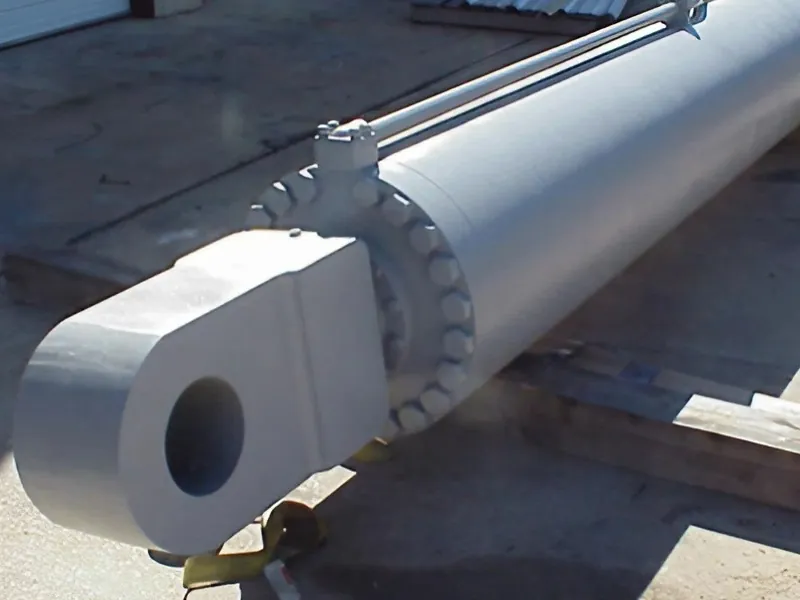

Detail photos:

Application:

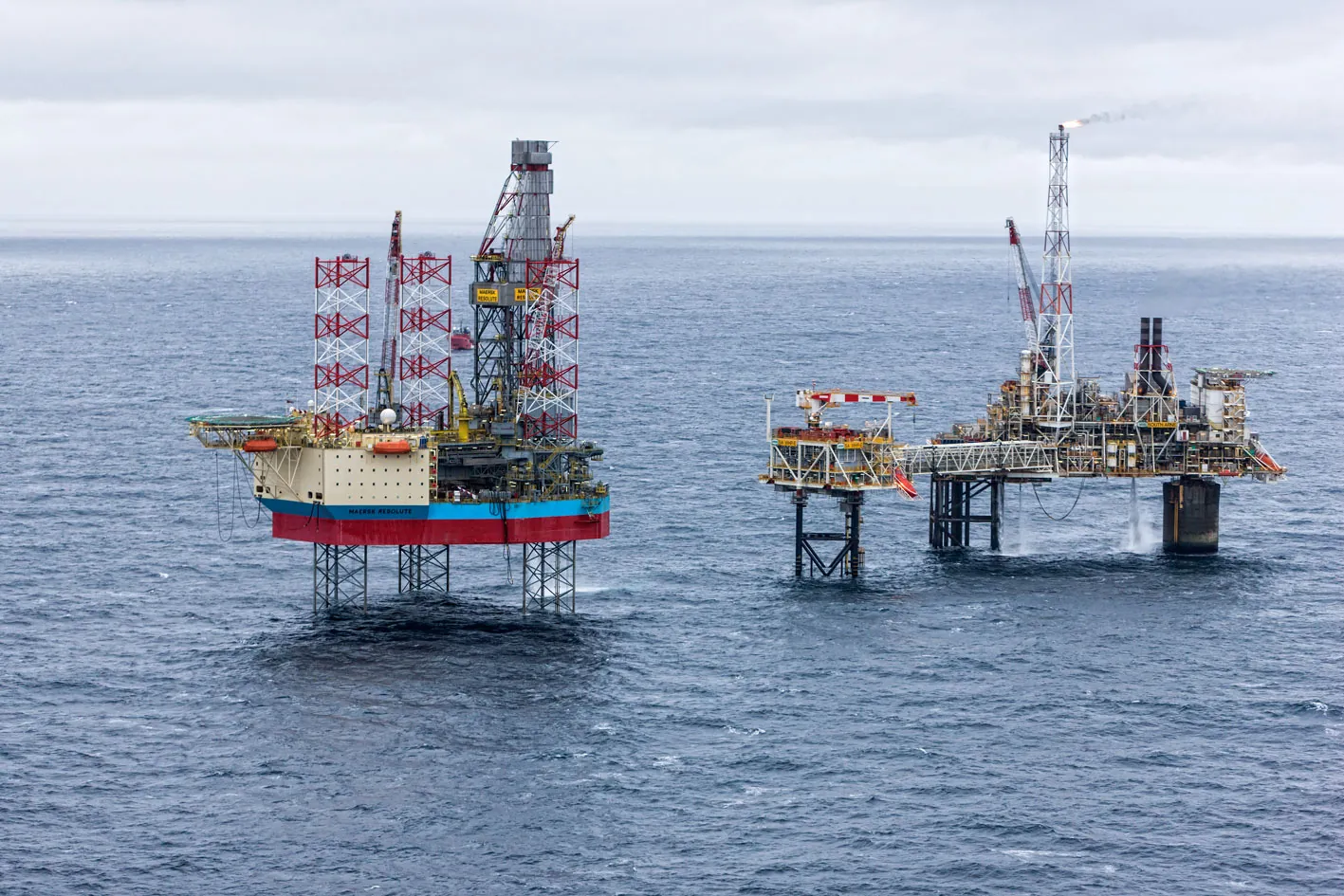

Offshore Platform Elevation Control:Leverage the off-shore jacking cylinder for precise and controlled elevation adjustments of offshore platforms.

The cylinder's advanced design and field-tested features ensure stable and reliable platform positioning.

Subsea Construction and Installation:Employ the jacking cylinder in subsea construction projects for controlled lifting and positioning of heavy structures. Its corrosion-resistant properties make it well-suited for harsh underwater environments.

Dynamic Load Handling:Utilize the cylinder's high wear resistance and robust construction to handle dynamic loads during off-shore operations.

This capability is crucial for managing varying weights and forces in challenging marine conditions.

Zero Leakage Assurance:Capitalize on the hydraulic cylinder's "zero leakage" assurance, critical for maintaining the integrity of the off-shore platform's

hydraulic system. This feature enhances operational safety and minimizes the risk of environmental impact.

Temperature-Adaptive Welding:Benefit from specialized welding for low-temperature applications, ensuring the jacking cylinder's performance and

structural integrity even in extreme cold conditions prevalent in off-shore environments.
