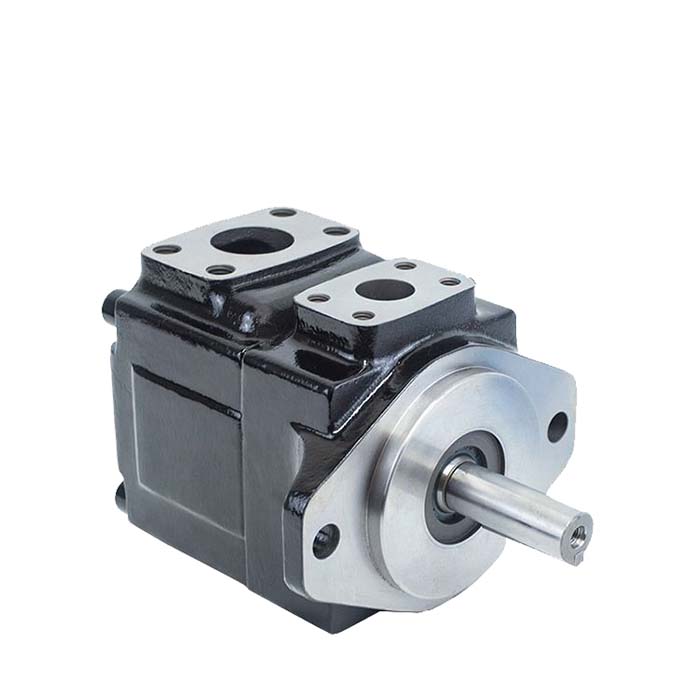

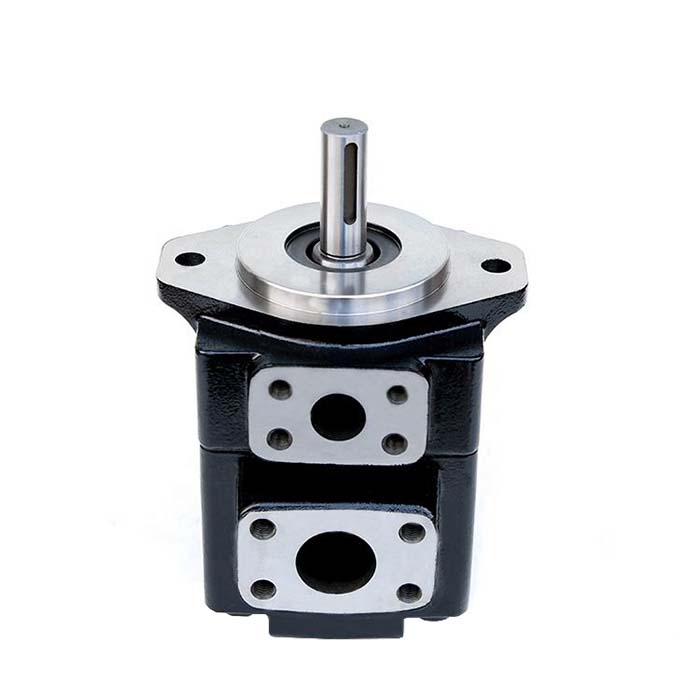

Model Number:T6C
Place of Origin:Zhejiang, China
Pressure:High Pressure
Structure:vane pump
Usage:Oil
Power:Hydraulic
Application:cutting,plastic,leather,pressure,engineering,metallurgical machinery
Fuel:hydraulic oil
Theory:Rotary Pump
Standard or Nonstandard:Standar
Minimum Order:
Supply Ability:
Model Number:T6C
Place of Origin:Zhejiang, China
Pressure:High Pressure
Structure:Vane Pump
Usage:Oil
Power:Hydraulic
Application:cutting,plastic,leather,pressure,engineering,metallurgical machinery
Fuel:hydraulic oil
Theory:Rotary Pump
Standard or Nonstandard:Standard
Weight:15.7 KG
Warranty:1 Year
Specifications Series | PC specification | Displacementq | Min. speed | Max. speed | Max. pressure | ||||||
HF-0 HF-1 HF-2 | HF-3 HF-4 HF-5 | HF-0,HF-2 | HF-1,HF-4,HF-5 | HF-3 | |||||||
Intermittent | Continuous | Intermittent | Continuous | Intermittent | Continuous | ||||||
mL/r | r/min | r/min | r/min | bar | bar | bar | bar | bar | bar | ||
T6C | 003 | 10.8 | 600 | 2800 | 1800 | 275 | 240 | 210 | 175 | 175 | 140 |
005 | 17.0 | ||||||||||
006 | 21.2 | ||||||||||
008 | 26.2 | ||||||||||
010 | 34.0 | ||||||||||
012 | 37.0 | ||||||||||
014 | 46.0 | ||||||||||
017 | 58.0 | ||||||||||
020 | 63.5 | ||||||||||
022 | 70.0 | ||||||||||
025 | 79.0 | 2500 | |||||||||
028 | 89.0 | 210 | 160 | 160 | |||||||
031 | 100.0 |
Application Specification:
Initial Startup Checks:
Check the accuracy of design and installation of hydraulic station:
♦ Make the distance between inlet and outlet as long as possible.
♦ The pipe orifice of inlet and outlet should be slope and the section eagle should be greater than or equal to 45°, in order to increase passage section ,slower velocity, recommend velocity in inlet is between 0.5m/s and 1.9m/s. and in outlet is below 6m/s.
♦ Confirm the oil ports are below the oil level in fuel tank in the worst-case scenario (example: all of hydraulic cylinder pistons are extending to the extreme position),
♦ Specifications of the air filter should be threes greater than the maximum return Flow.
♦ Set the release valve for exhaust on oil returning pipe; and you can also slightly loosen the joint of pump outlet to vent until there are no bubbles in the oil spill, then you can tighten the joint to produce the same effect.
Notice: This method is suitable for low pressure and you should make sure the pressure will not rise.
