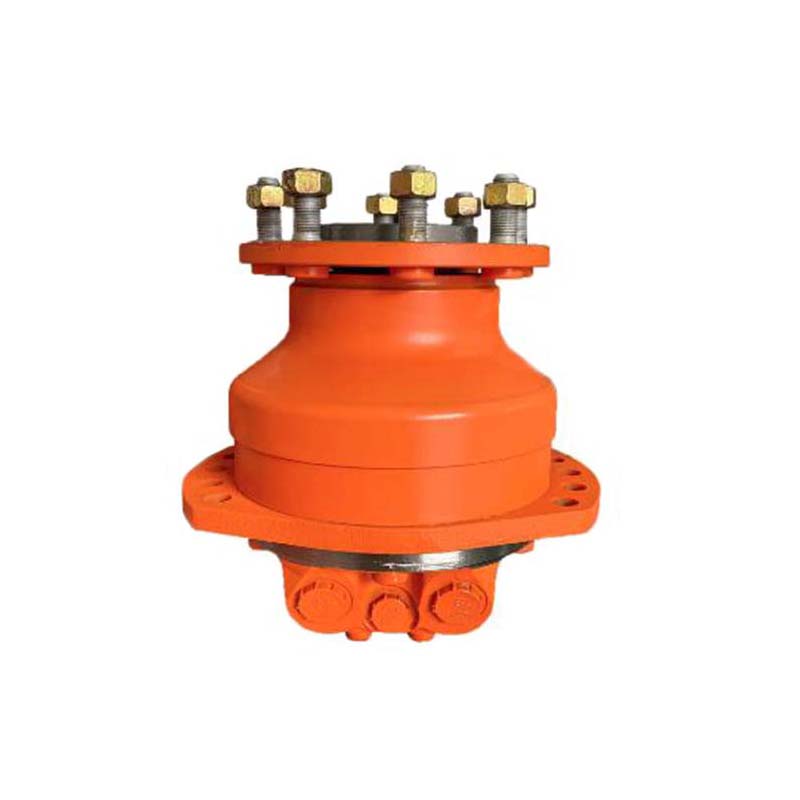

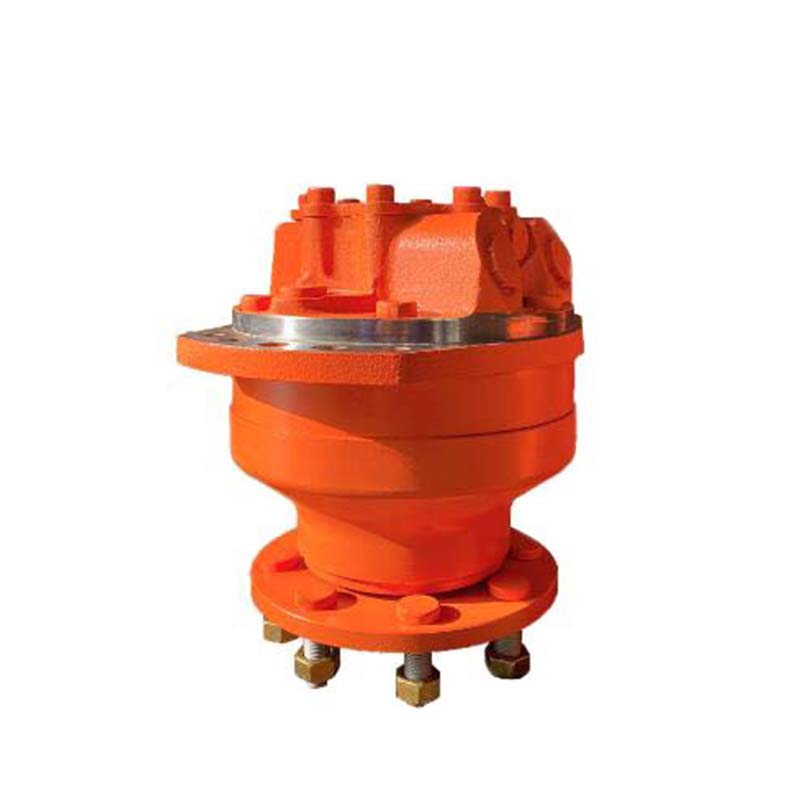

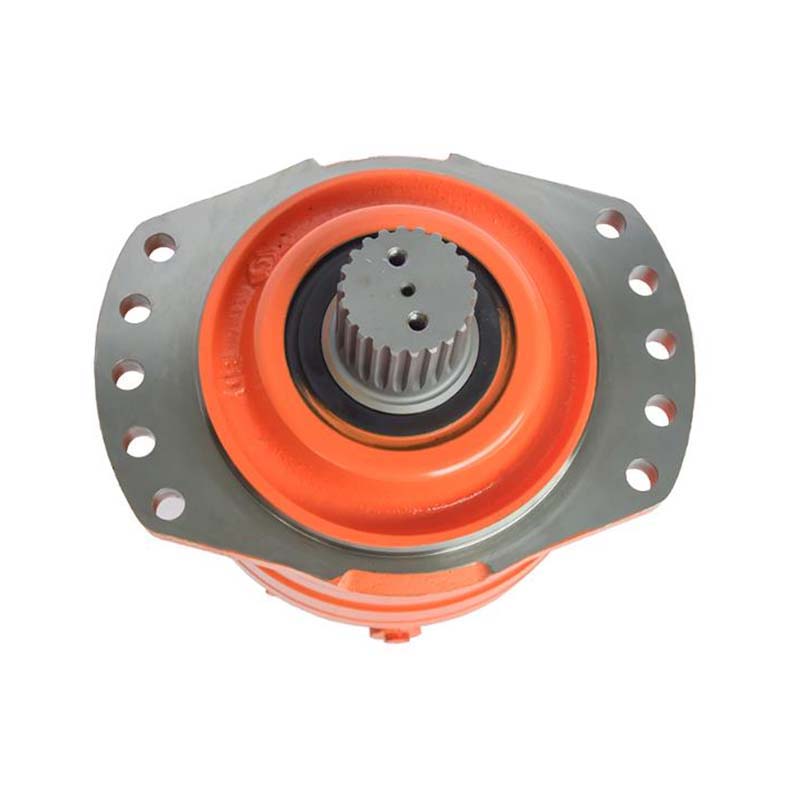

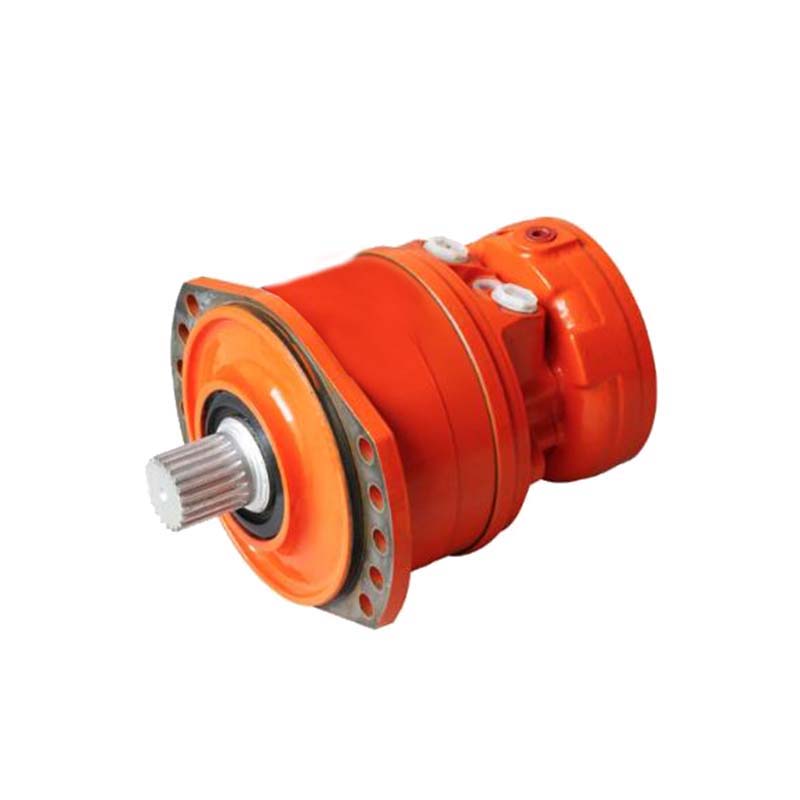

Ms/Mse02 Poclain Hydraulic Motors

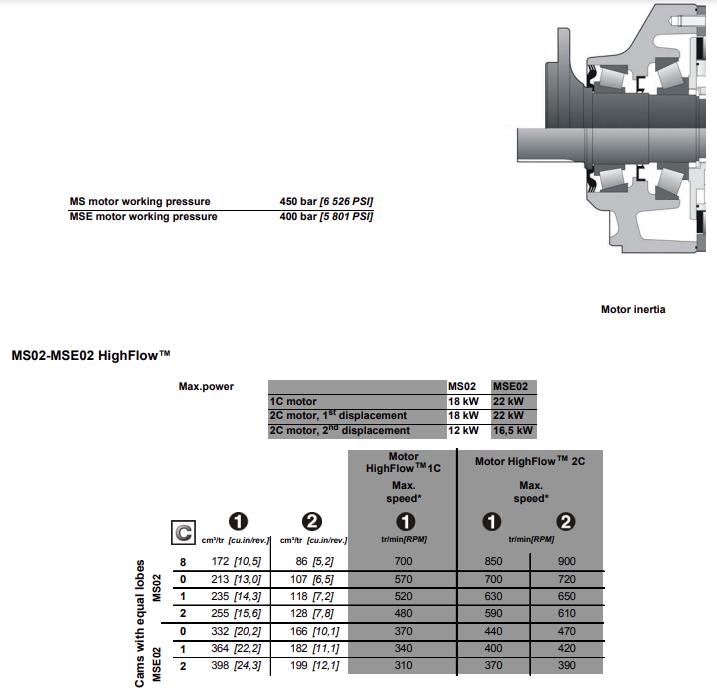

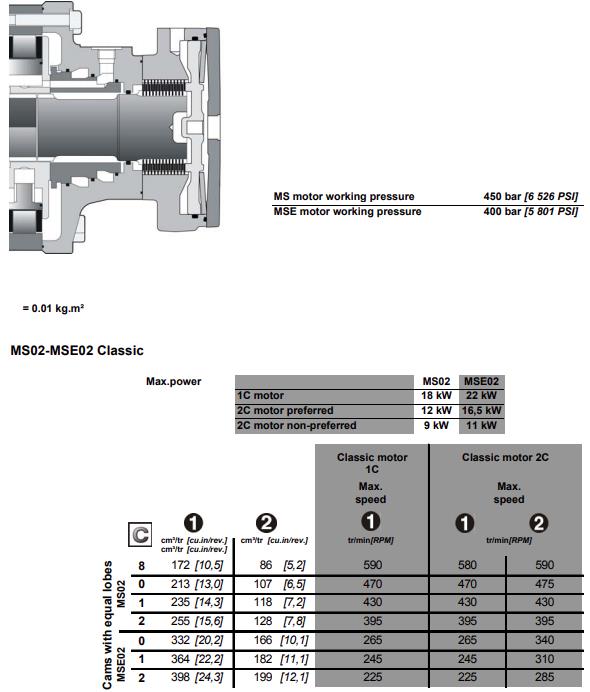

Technical specifications
MS02-MSE02 motor max 398cc, up to 22 kW
MAX. Displacement CM3/REV：398
Power MAX (kW)：22
Power MAX (HP)：29.5
Torque MAX (Nm at 100 bar)：2500
Torque MAX (lb.ft at 1000 PSI)：1843
Speed MAX (RPM)：900
MAX Pressure（bar）：450
MAX Pressure（psi）：6
Minimum Order:
Supply Ability:
Technical specifications
MS02-MSE02 motor max 398cc, up to 22 kW
MAX. Displacement CM3/REV：398
Power MAX (kW)：22
Power MAX (HP)：29.5
Torque MAX (Nm at 100 bar)：2500
Torque MAX (lb.ft at 1000 PSI)：1843
Speed MAX (RPM)：900
MAX Pressure（bar）：450
MAX Pressure（psi）：6527
Direct drive motor up to 22 kW ideal for wheel motor or tool drive, from 172 to 398cc, from 400 to 450 bar max (max torque 2500 N.m) and high speed reached at 900 rpm with multispeed conception. The modular design ease the use on all demanding application for the most demandable market as construction equipment, material handling, agricultural, environment, mining, on rail, marine, industry
